Overview / Basic Info.
Model NO.6031AB
Shelf Time1 Year
AppearanceColorless Transparent Liquid
Transport PackageDrum
SpecificationA Grade Quality
OriginChina
HS Code35069120
Production Capacity10000ton/Year
Product Description
Epoxy resin 3136AB-SM11 is an epoxy resin glue cured at room temperature and low temperature. It has strong adhesion, good yellowing resistance, very good surface effect, natural defoaming, greenhouse curing or heating curing; it is specially used for covering large areas. Marble surface coating, resin painting surface coating, removal, background wall surface coating, and other nameplates, electronic potting and bonding, mold perfusion, and insulation, moisture-proof potting, confidentiality sealing, coating protection, etc. of other electronic parts.
Applications
It is dedicated to the insulation of large pieces of crafts, river table and electronic potting and mold filling and other electronic parts, moisture-proof potting, secret sealing and so on.
Product Parameters
Material Properties:

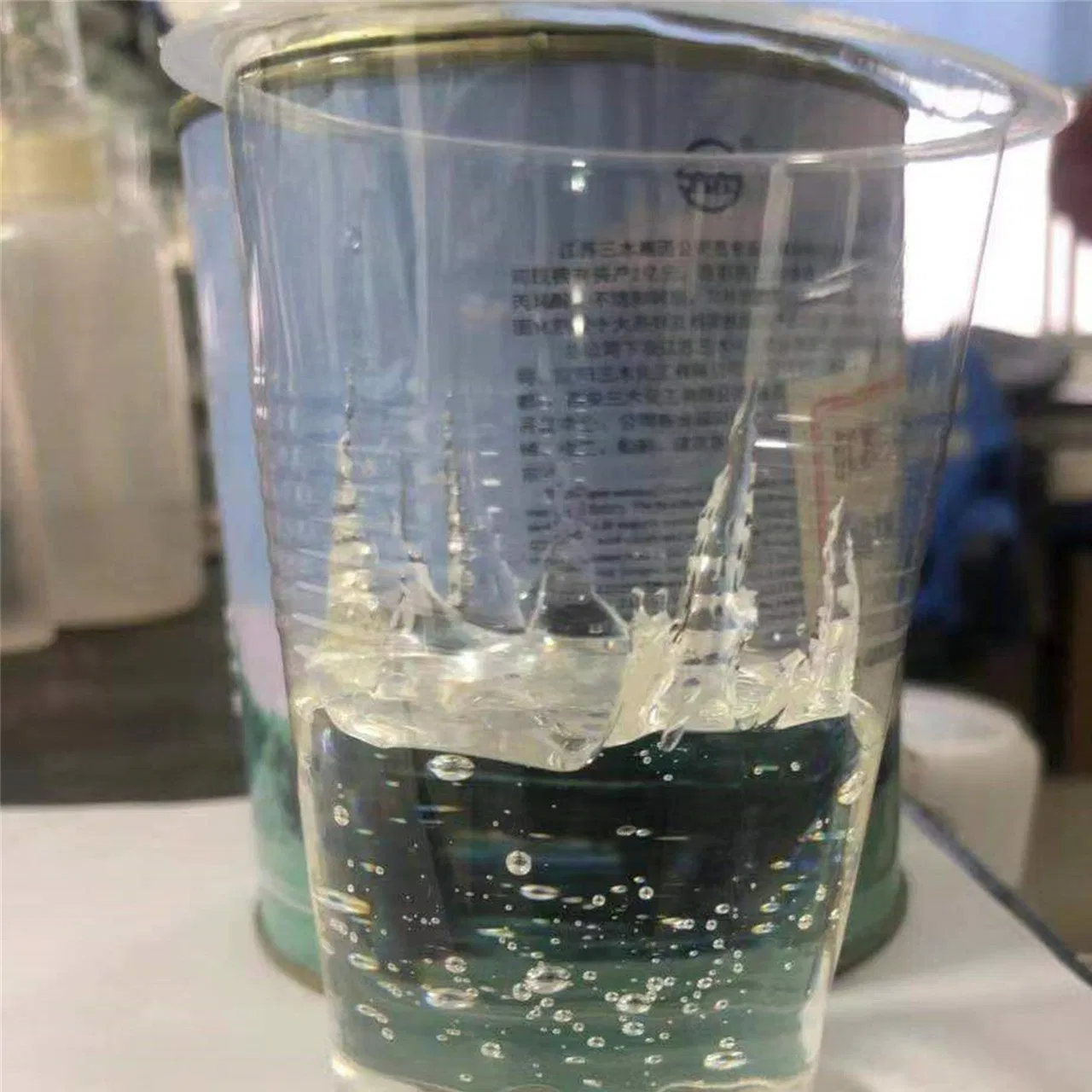

- Color: Colorless and transparent
- Proportion (A/B): 1.15 / 0.97
- Viscosity 25ºC: 1000-1800CPS (A) / 250MAXCPS (B)
Conditions of Use:
- Ratio: A:B = 100:33 (Weight ratio)
- Hardening: 25ºC × 8H-10H initial curing, 24 hours complete; 50ºC×2H (2g)
- Pot life: 25ºC × 30min (100g)
Hardened Nature:
- Hardness (Shore D): <83
- Withstand voltage (KV/mm): 22
- Bending strength (Kg/mm2): 28
- Surface resistance (Ohmm2): 5X10*15
- Water absorption: <0.15%
Installation Instructions
Give us a chance, and we'll return you with satisfaction.
Frequently Asked Questions (FAQ)
Q1: What is the mixing ratio for 3136AB-SM11?
The mixing ratio is 100:33 by weight (A:B). Accurate weighing is essential for proper curing.
Q2: How long does it take to fully cure?
At 25ºC, it takes about 8-10 hours for initial curing and 24 hours for complete curing. Heat curing at 50ºC can speed up the process.
Q3: Is this resin resistant to yellowing?
Yes, this formula includes agents that provide good yellowing resistance, making it ideal for marble and decorative surface coatings.
Q4: Can it be used for large river tables?
Absolutely. It is specifically designed for large area coverage, insulation of craft pieces, and river table applications.
Q5: What are the main features of the finished surface?
The cured surface features high transparency, natural defoaming properties, and a smooth, high-gloss finish.
Q6: What is the shelf life of this product?
The shelf life is 1 year when stored in a cool, dry place in its original sealed packaging.
