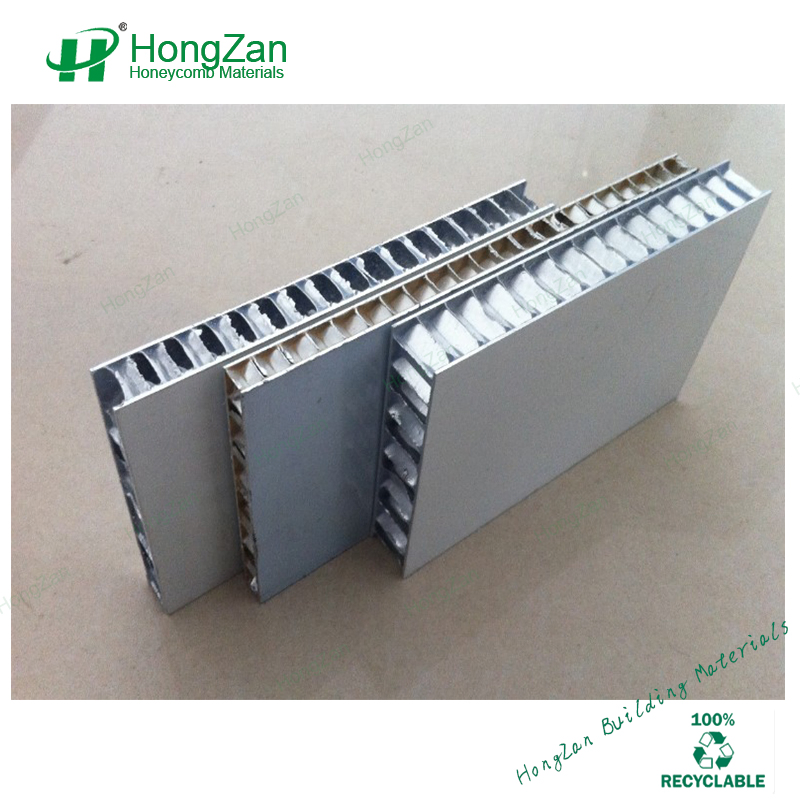

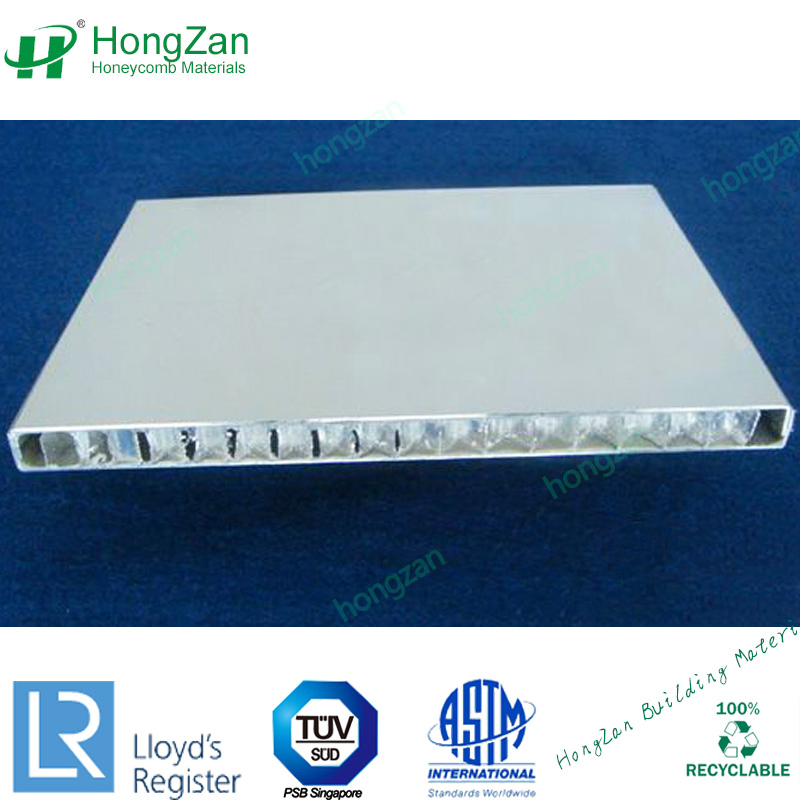

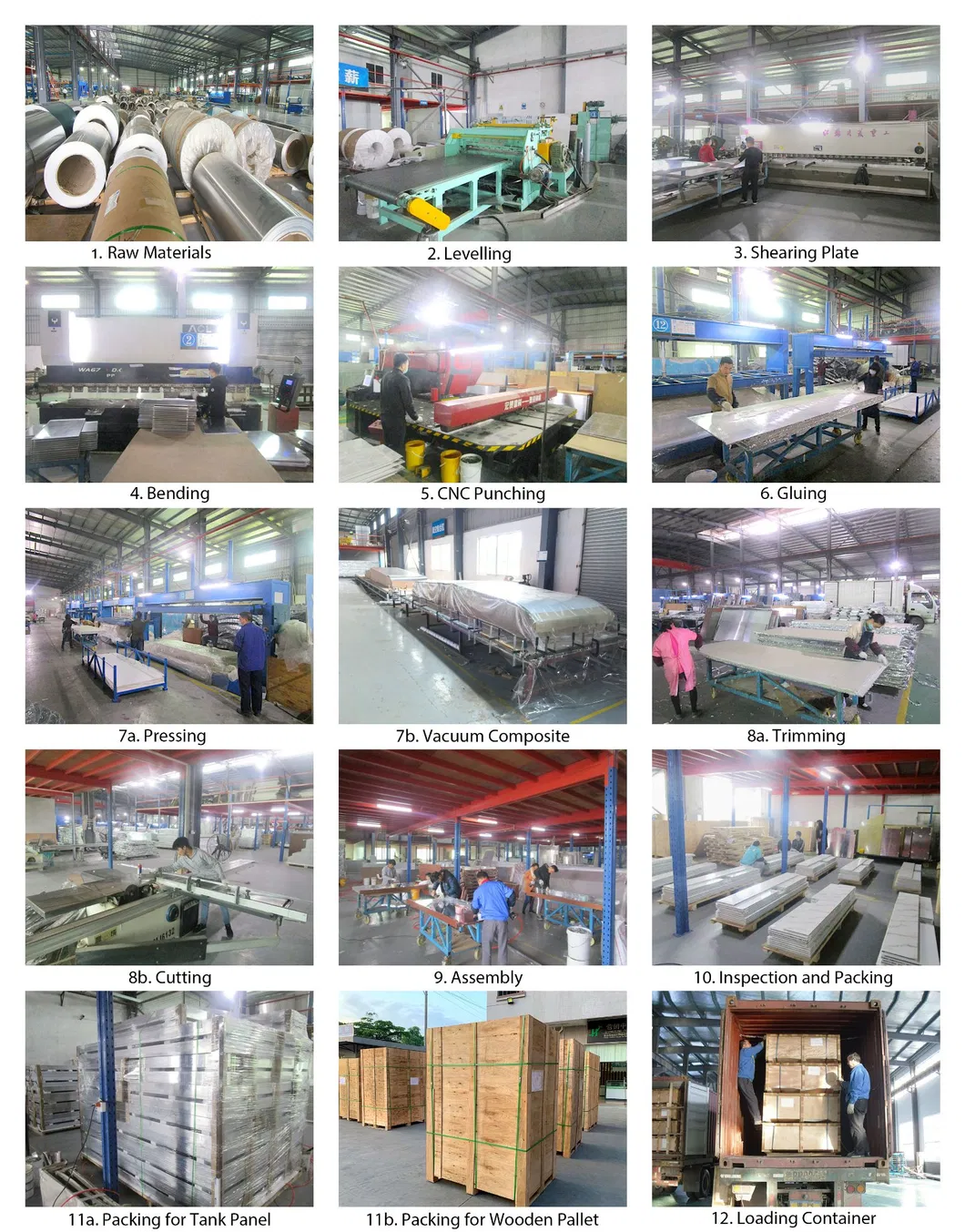

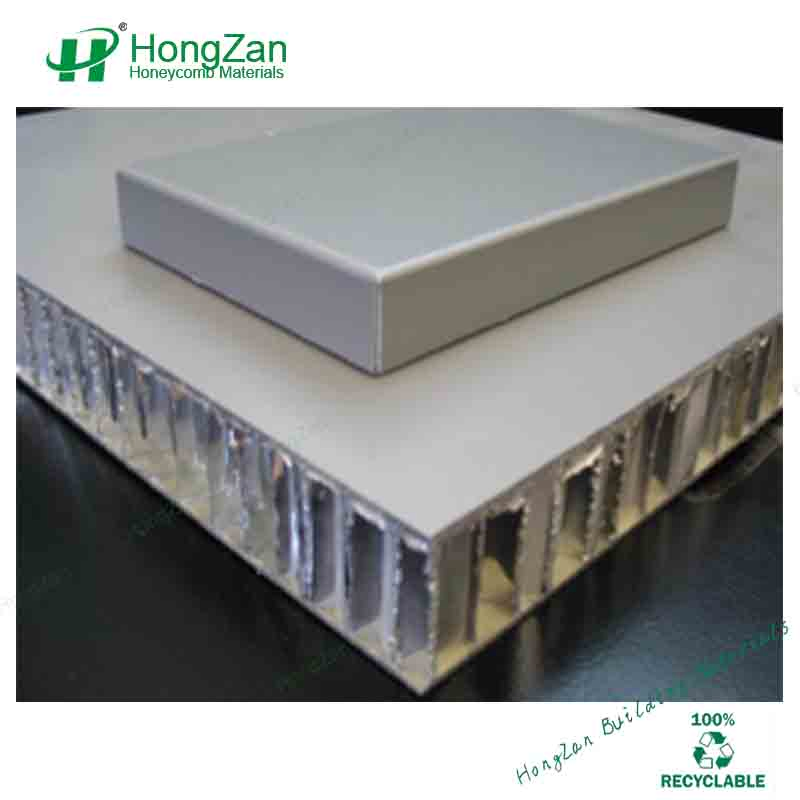

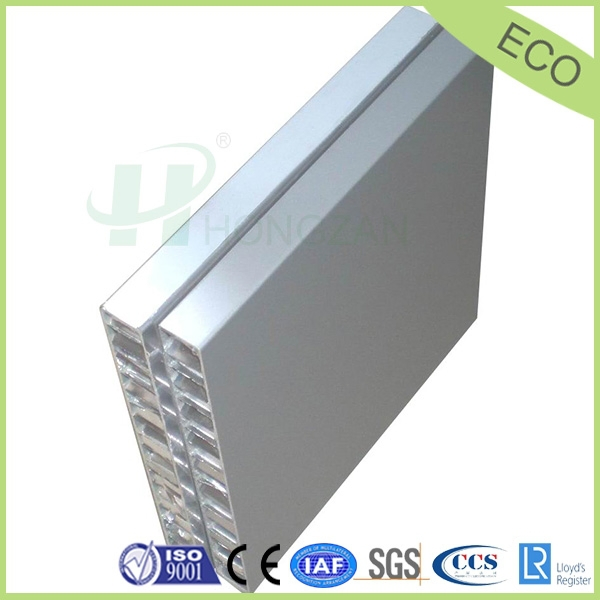

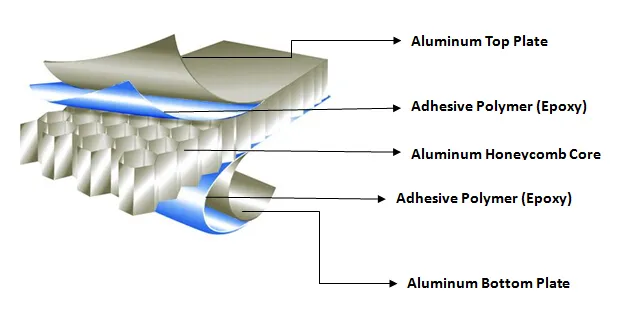

Aluminum honeycomb panels are high-quality composite materials mainly used for the decoration of ships and buildings. Made with advanced fluorocarbon lacquer pre-roll coating, the surface maintains color integrity for 15-20 years. These panels are manufactured using bi-component modified epoxy resins under high temperature and pressure in dust-free facilities, ensuring superior bending resistance, flatness, and reliability. They are organic, environmentally protective materials characterized by high strength and magnificent appearance.
A. Ultra-Lightweight & High Rigidity: Only 1/5 the weight of solid aluminum panels. A 15mm panel weighs only 6kg/sqm while offering extreme straightness and wind resistance.
B. Insulation Performance: Blocks sound waves by 20-30dB and offers a heat conduction coefficient of 0.104-0.130W/M.k. Ideal for energy saving and noise reduction.
C. Surface Excellence: PVDF continuous roller coating ensures color uniformity and weather resistance against industrial pollution and UV exposure.

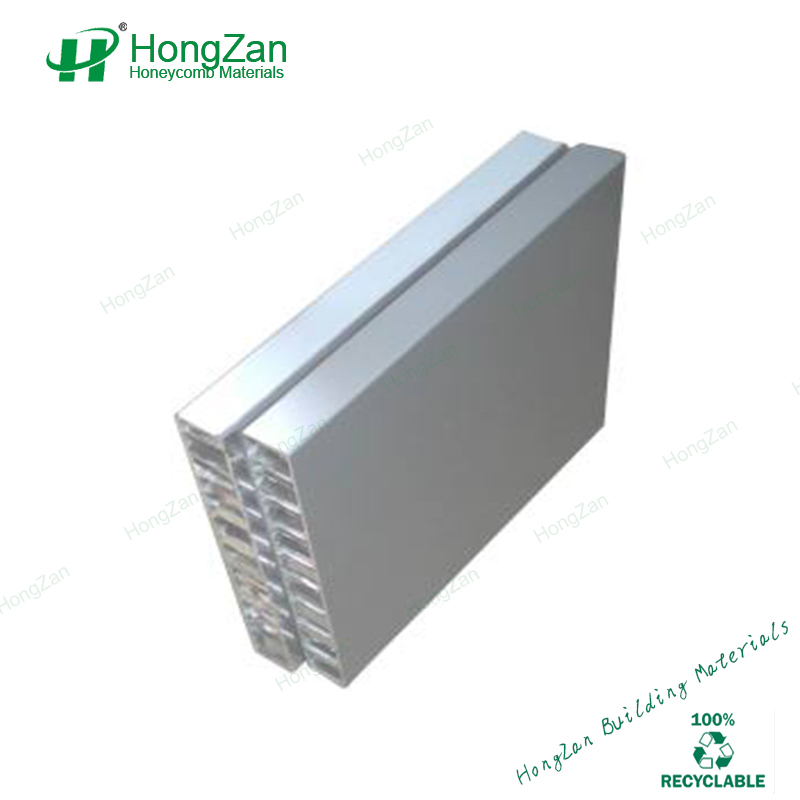

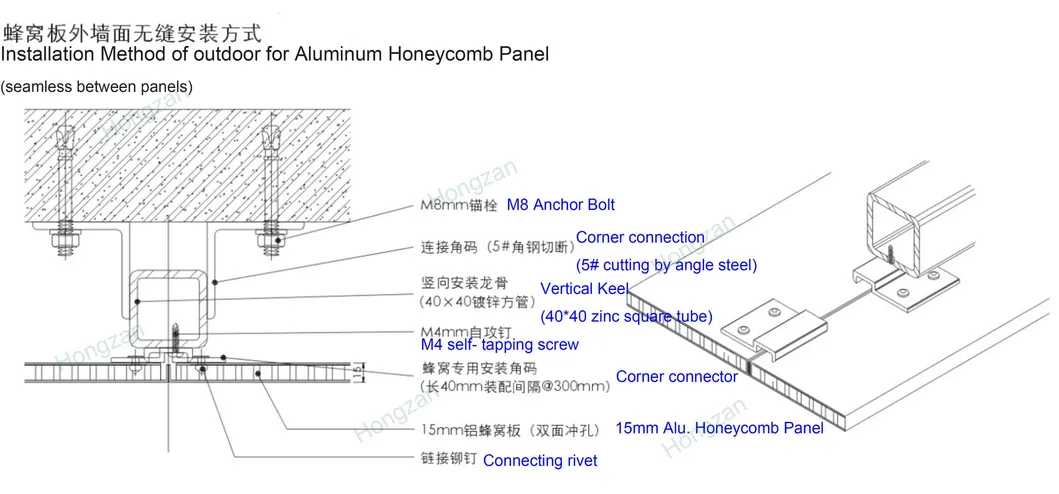

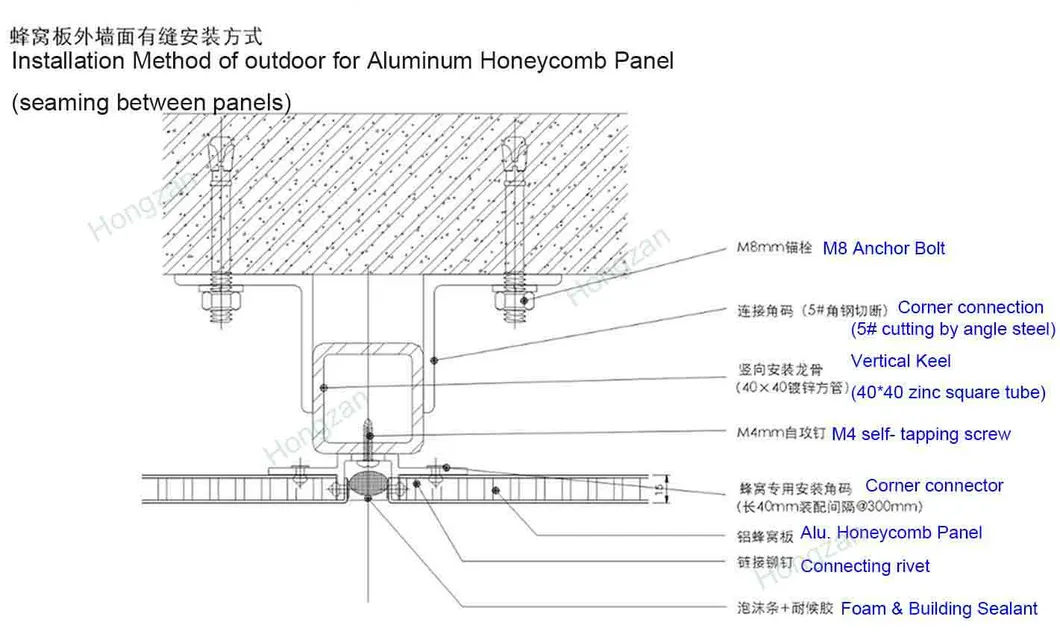

D. Easy Installation: Can be factory-processed into various shapes (curved, L-type, U-type) for rapid on-site assembly.
| Thickness Parameters | 20mm Panel | 25mm Panel |
|---|---|---|
| Front/Back Aluminum | 1.00mm | 1.00mm |
| Weight (kg/m²) | 7.4 | 7.8 |
| Inertia Moment I (cm⁴/m) | 19.85 | 31.67 |
| Sound Insulation (ISO717-RW) | 23dB | 25dB |
| Heat Transmission U(k) | 5.59 | 5.575 |
| Core Compression Strength | 4N/mm² | |
