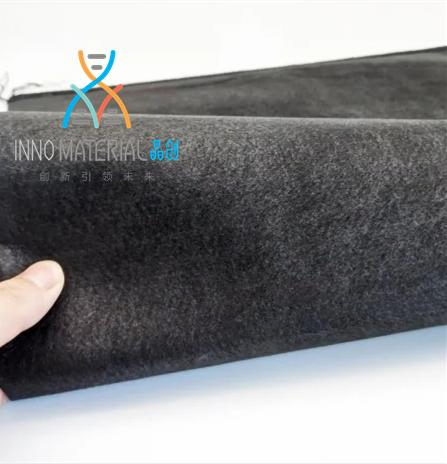

Reinforced Nonwoven Geotextile: Ideal for Various Environmental Uses

Basic Information

Model NO.

ASTM

Color

White

Certification

CE

Feature

Corrosion Resistant, Oxidation Resistance, Wear-resistant

Usage

Insulation, Waterproof, Water Filter

Material

PP

Kind

Non-woven

Width

1-6.5m

Length

Customized

HS Code

5602100000

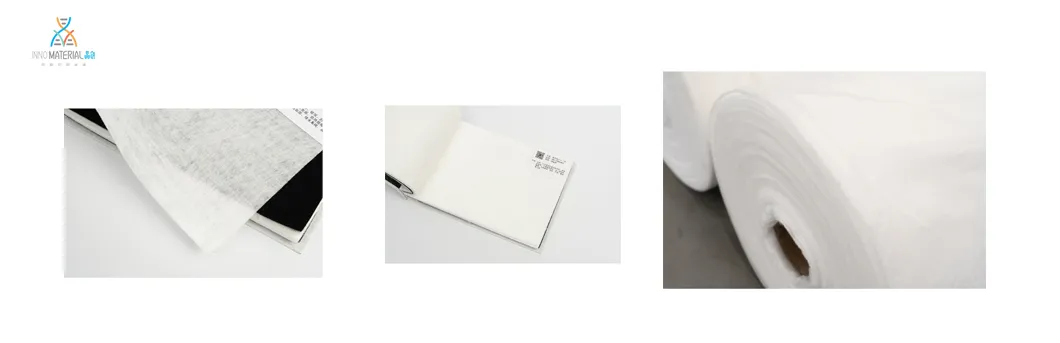

Polypropylene Filament Geotextile Advantages

Exclusive Technology: The world's first 6.5-meter-wide products, equipment protected in Asia.
Cost Efficient: Reducing splicing, enabling convenient construction and saving costs.
Top-tier Equipment: Automatic equipment developed by Oerlikon and OBA.
Premium Raw Materials: Polypropylene particles selected from French TOTAL.
Superior Strength: Single fiber within 5.5-13dtex ensuring stronger mechanical properties.
Project Safety: Surface free of floating wire, preventing layer splicing due to weather factors.

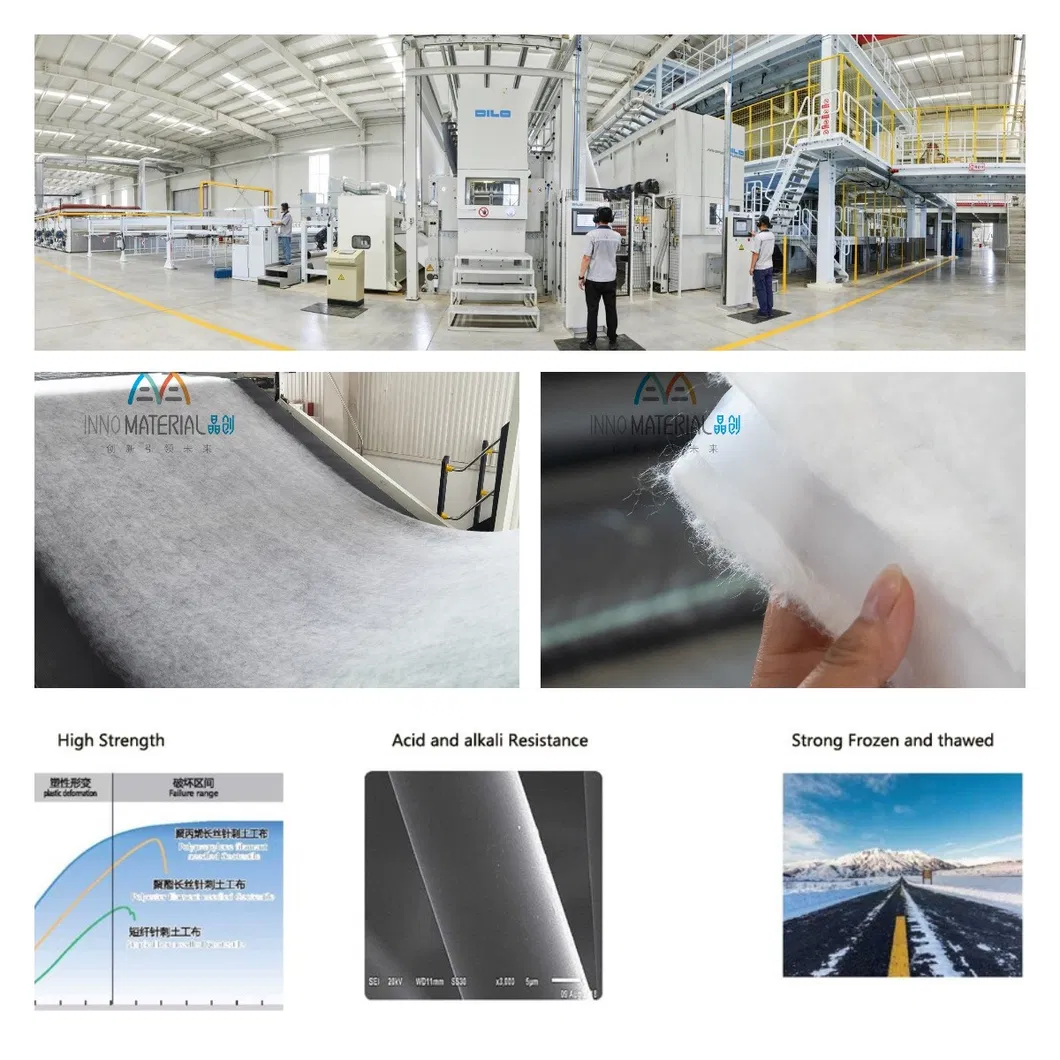

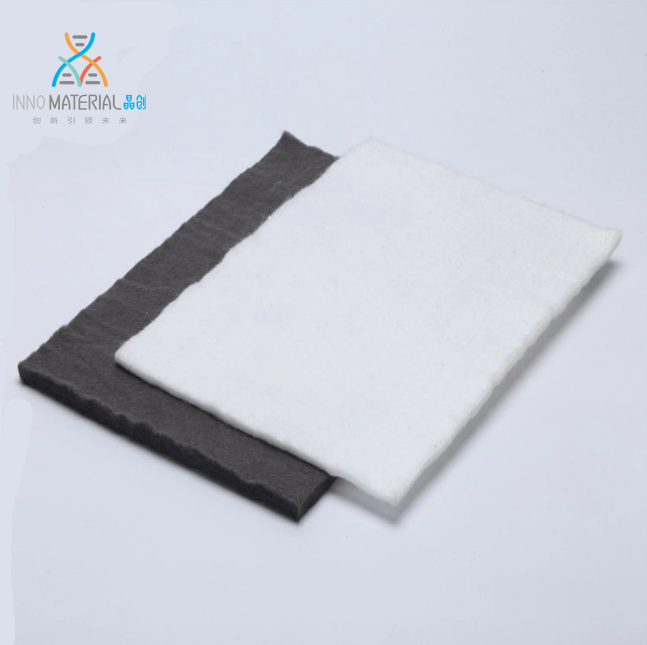

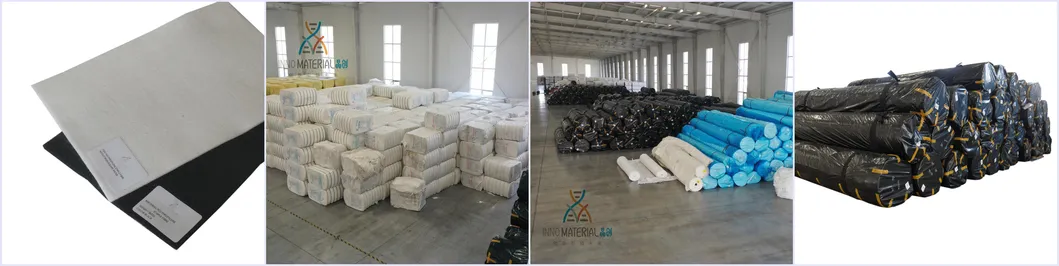

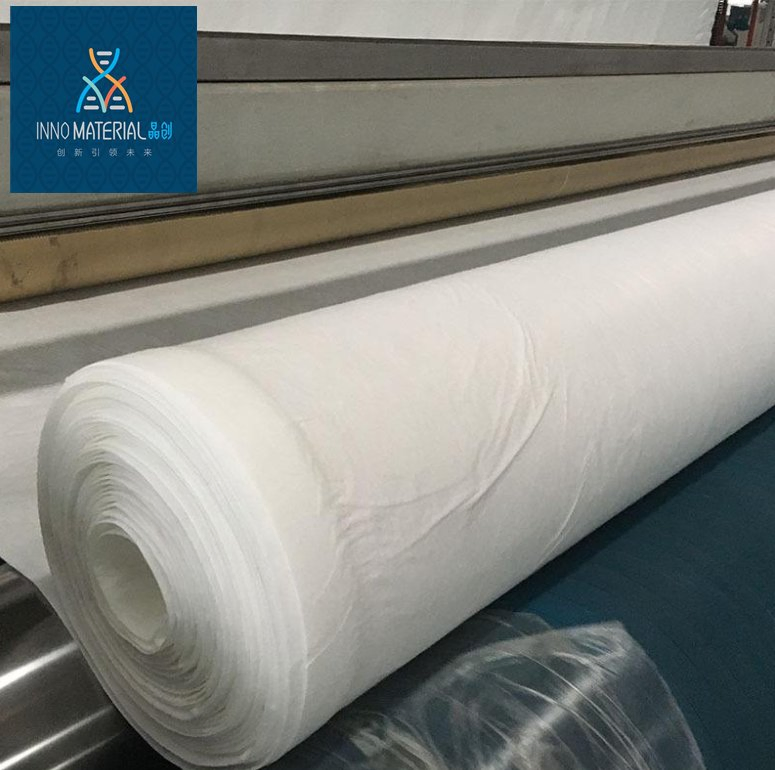

Product Display

Core Functions

1. Isolation: Maintains overall structure and functions by preventing mixing of different materials.

2. Filter: High water permeability while effectively intercepting soil particles.

3. Drainage: Creates internal soil drainage channels for liquid/gas emissions.

4. Reinforced: Enhances soil tensile strength and anti-deformation ability.

5. Protection: Distributes effective stress to prevent soil damage from external forces.

6. Closed: Forms impermeable insulation layers for road resurfacing.

Technical Data Property

Weight (g/m2)	100	150	200	300	400	500	600	800
Breaking Strength (≥KN)	6	11	15	22	28	34	40	50
Thickness (mm)	1.2	1.6	1.8	2.6	3.3	4.0	4.5	6.0
CBR Bursting (≥KN/m)	1.0	1.7	2.5	3.5	4.3	5.3	6.2	7.8

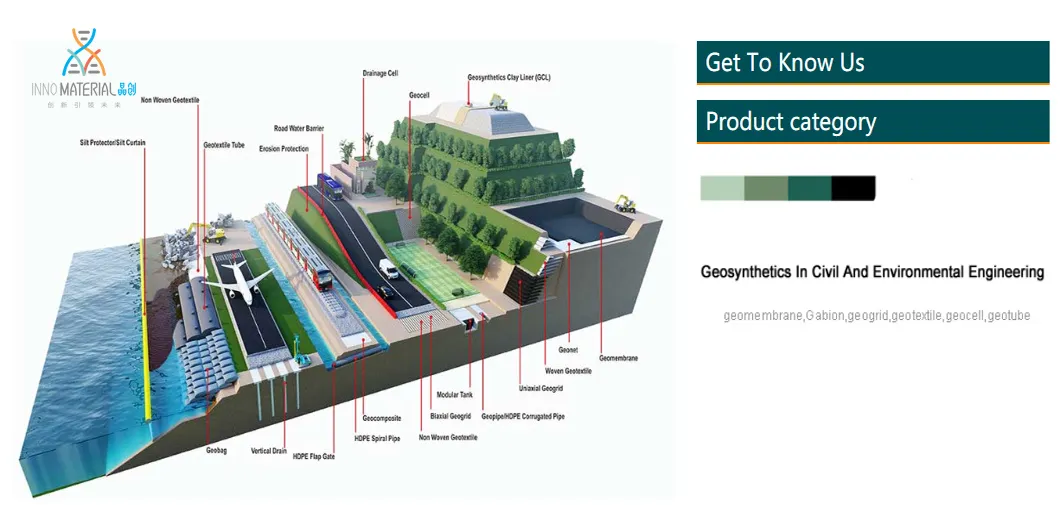

Product Applications

• High-speed rail sliding layers & vibration reduction
• Airport runway & highway crack proof isolation
• Port, wharf, and Sponge City underground pipelines
• Sewage treatment, landfills, and pollutant storage
• Farmland irrigation, watercourse, and reservoirs
• Ecological slope protection and greening

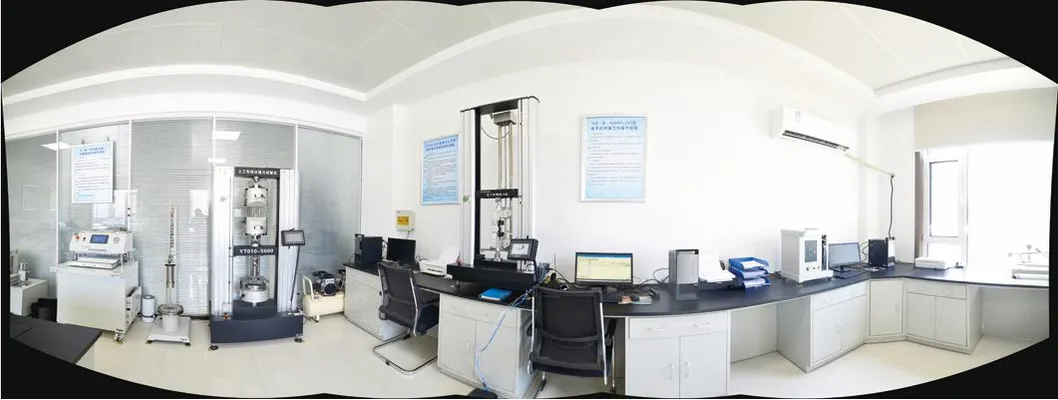

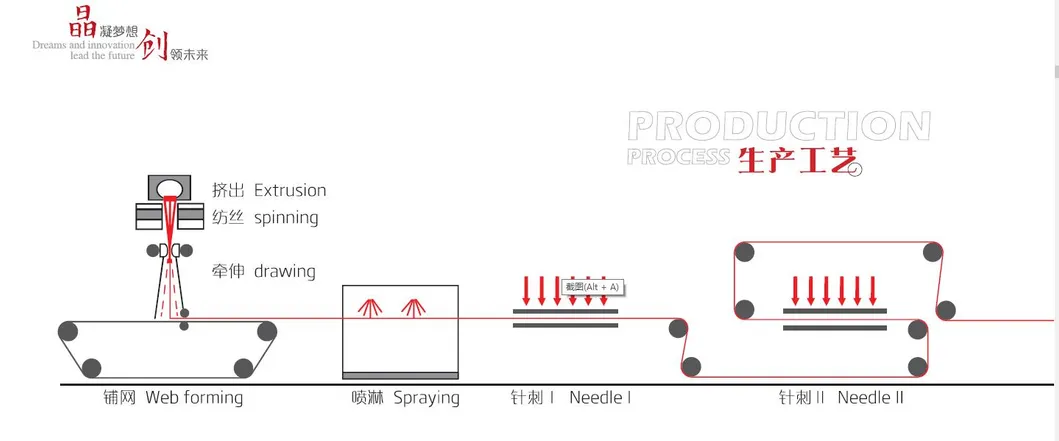

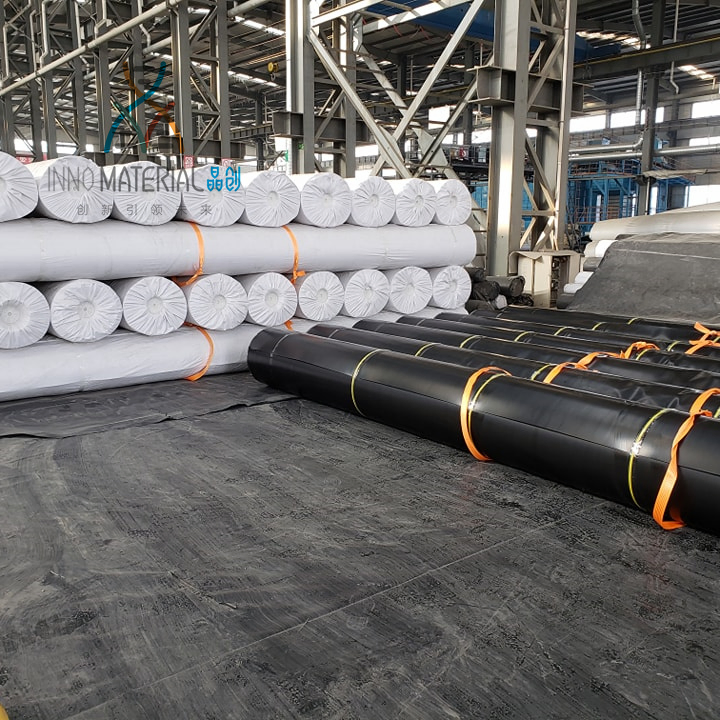

Production Process & Inspection

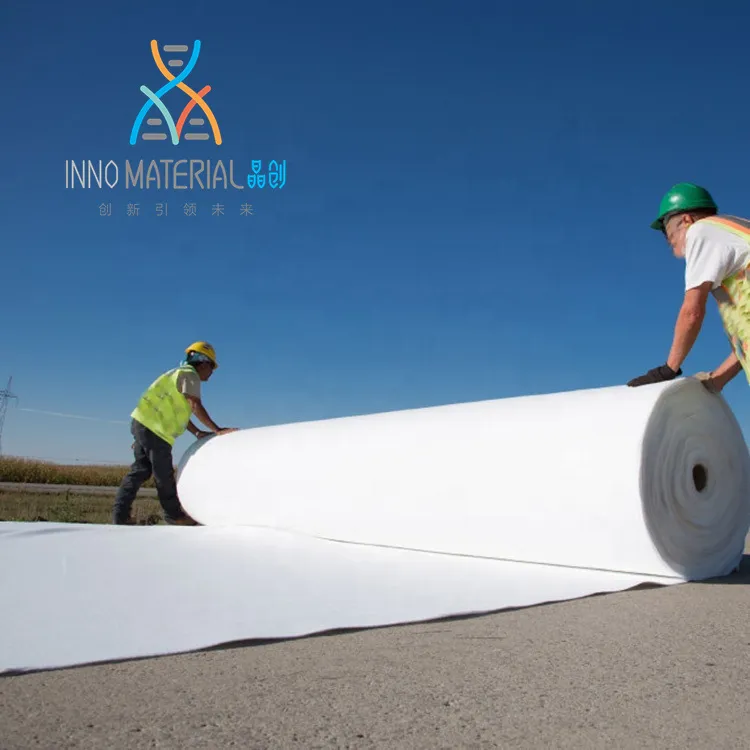

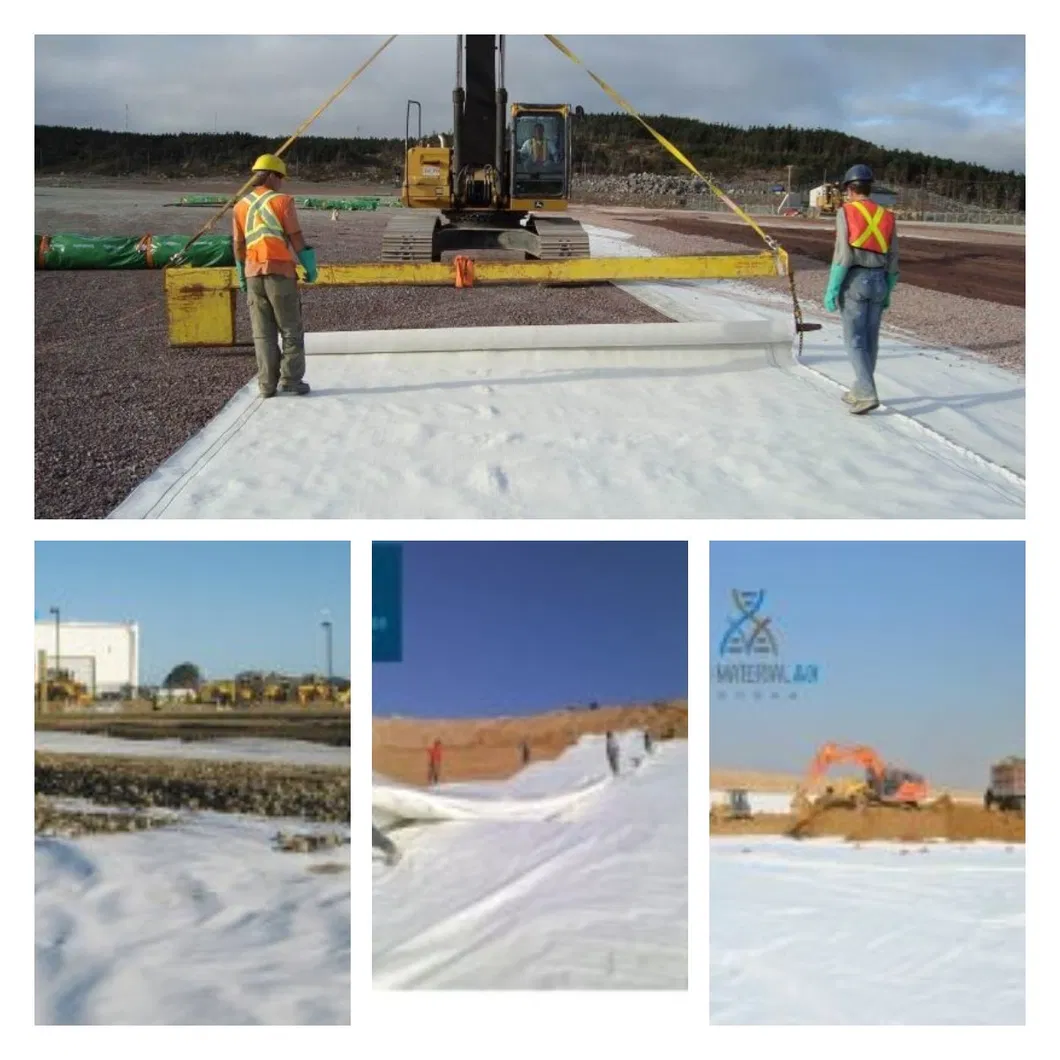

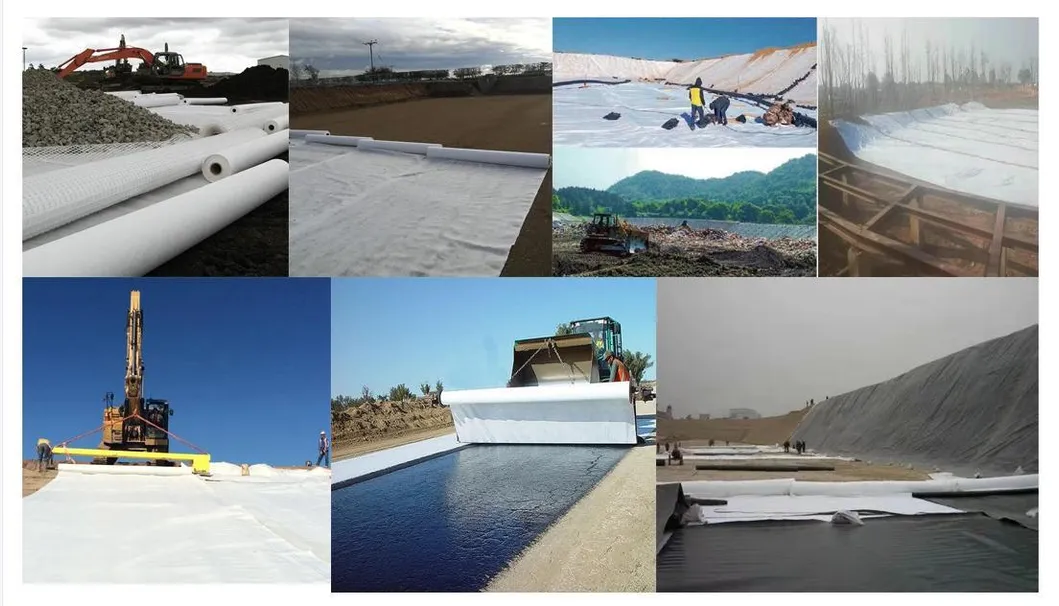

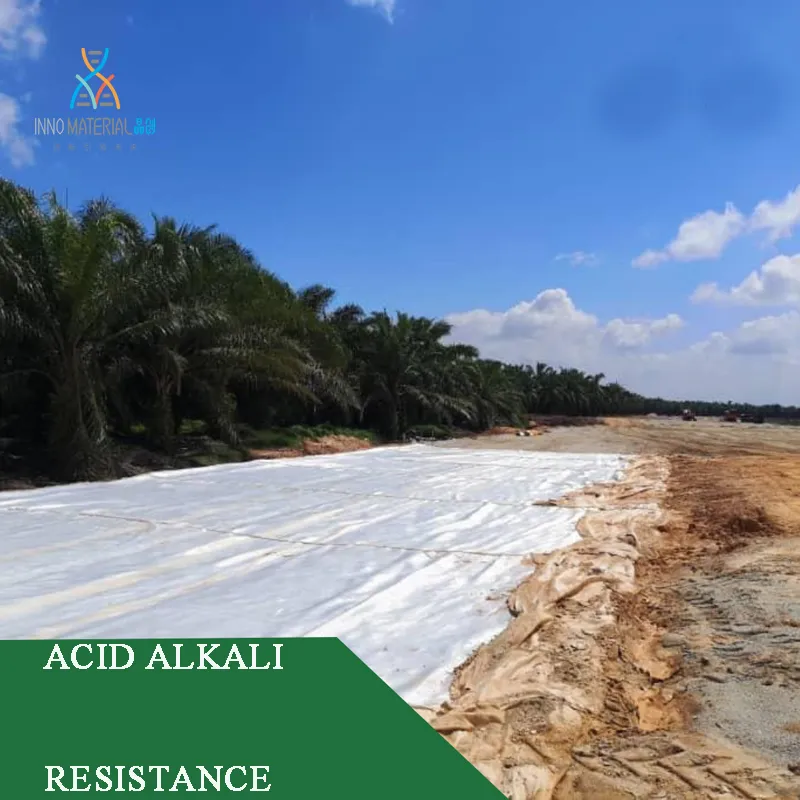

Project Reference

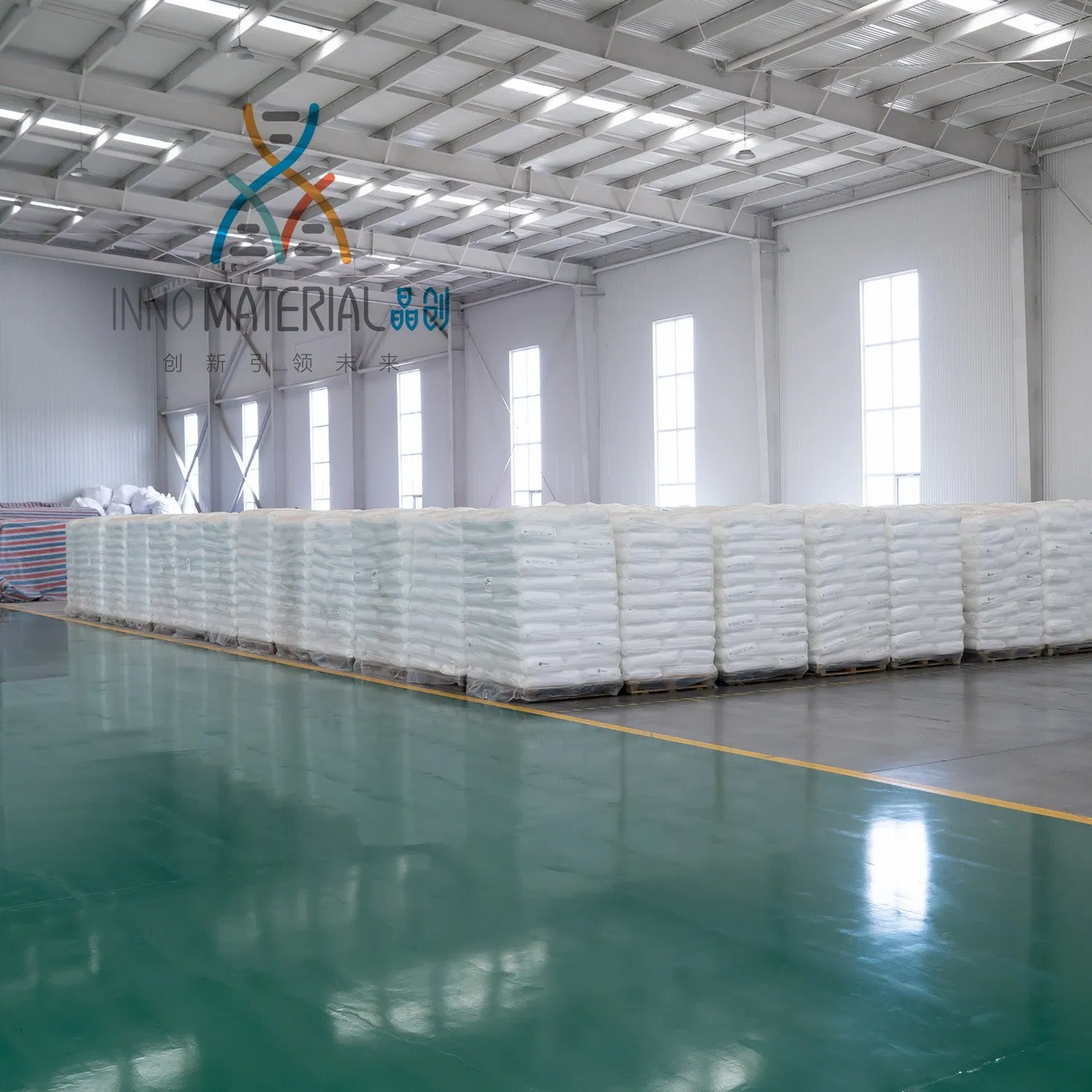

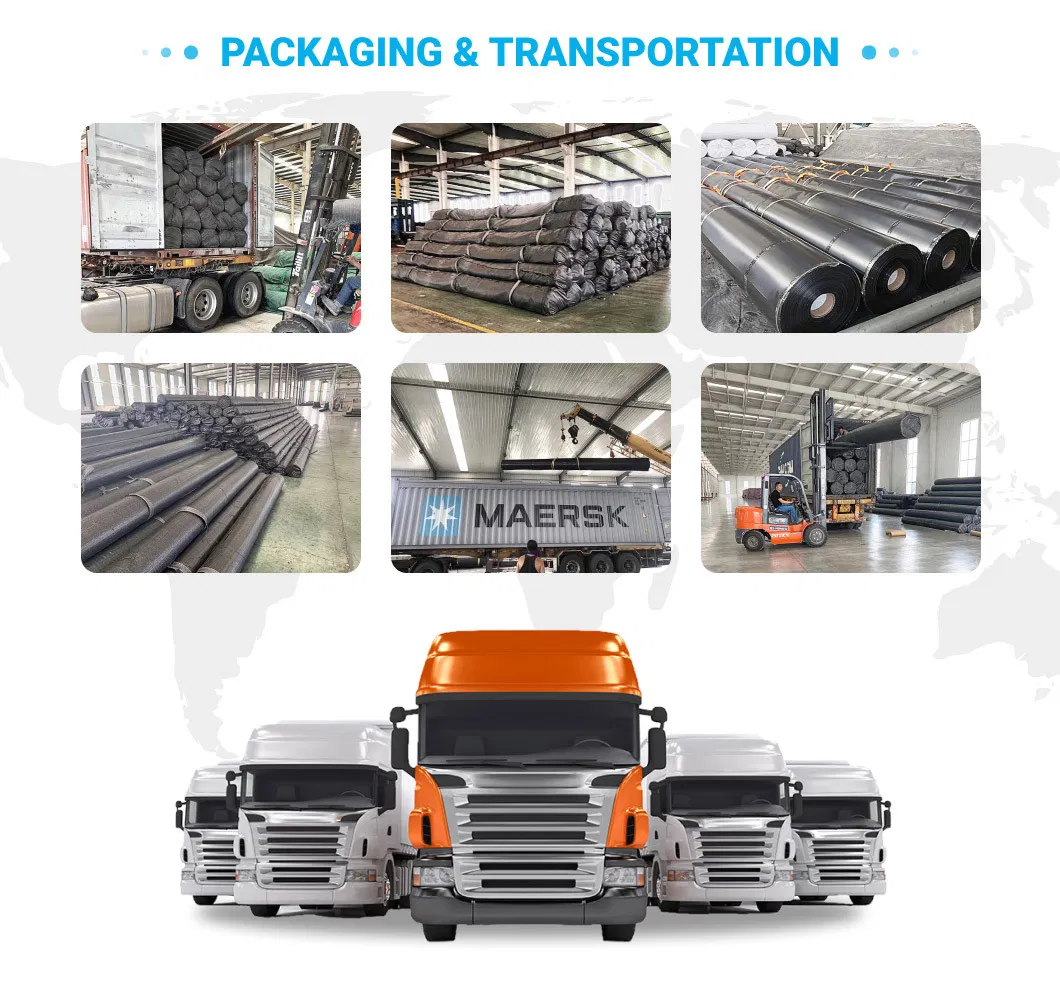

Certificates & Transport

Frequently Asked Questions

What are the main advantages of your Polypropylene Geotextile?

Our products feature a world-leading 6.5m width, which reduces splicing and construction costs. They are acid/alkali resistant and utilize premium materials from French TOTAL.

In which applications is this geotextile most used?

It is widely used in high-speed rail, airport runways, highways, sewage treatment plants, landfills, and farmland irrigation projects for insulation and filtration.

What is the production capacity for your filament geotextile?

The production capacity can reach 50,000 square meters per day, depending on the specific product specifications.

Do you provide customized lengths and widths?

Yes, we offer widths from 1m up to 6.5m and the length can be customized based on project requirements.

How do you ensure the quality of the geotextiles?

We use advanced Oerlikon equipment and have established a high-standard testing center and quality inspection process for every production line.

What certifications do your products have?

Our products are CE certified and meet various international engineering standards like ASTM.
