Basic Information
Model NO.:ASTM
Color:White
Certification:CE
Feature:Corrosion/Oxidation/Wear-resistant
Usage:Insulation, Waterproof, Filter
Material:PP (Polypropylene)
Kind:Non-woven

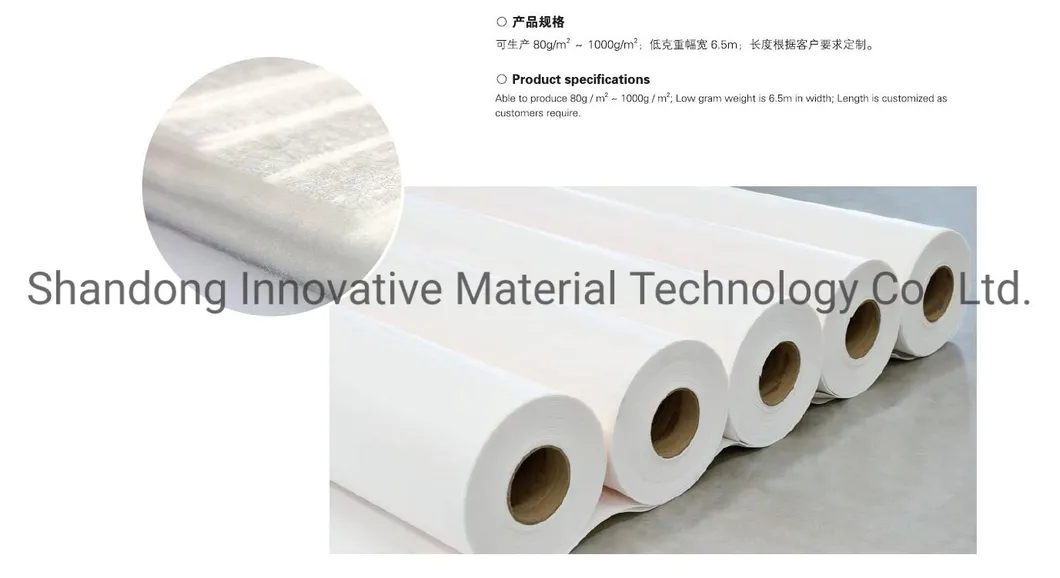

Width:1-6.5m
HS Code:5602100000
Capacity:50000sqm/Day
Product Description

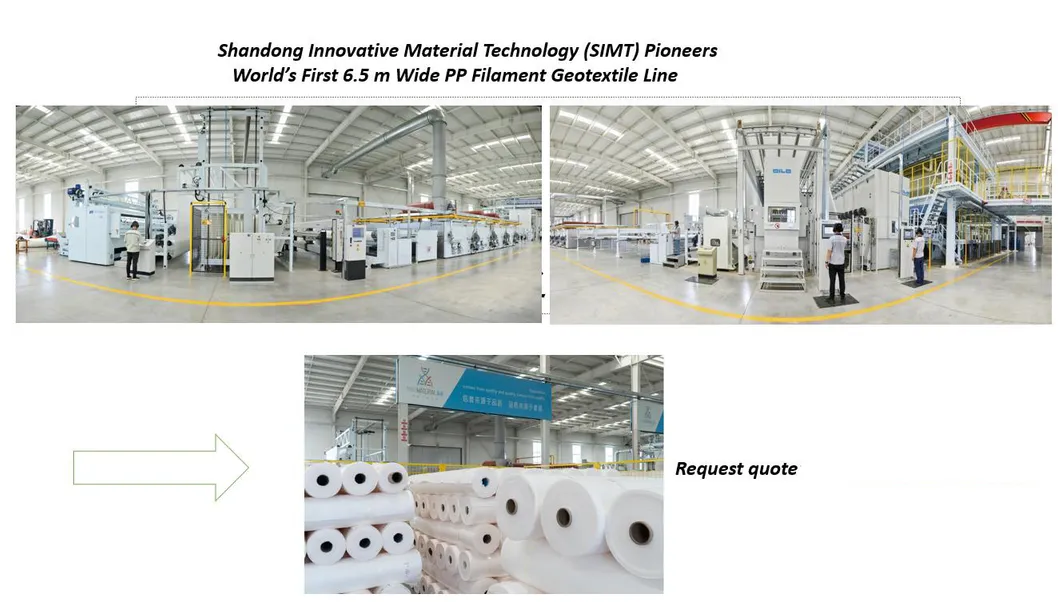

🚀 World's First 6.5-Meter-Wide Technology
Featuring exclusive Asian regional technology protection and advanced automated equipment from world-leading manufacturers.
- Reduced Splicing: Convenient construction and significant cost savings.
- Premium Raw Materials: Selected polypropylene particles from global petrochemical leaders.

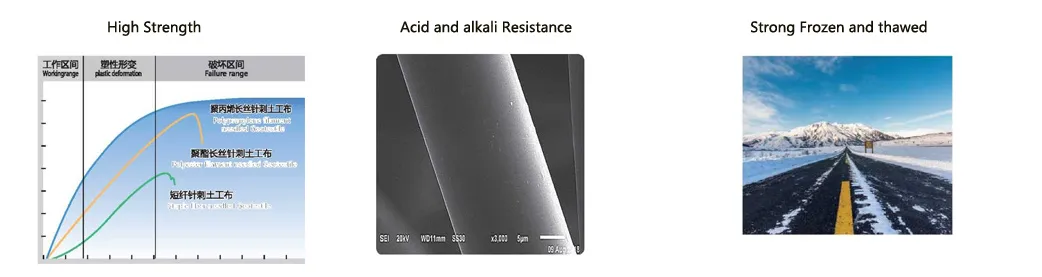

- Superior Mechanical Properties: Single fiber within 5.5-13dtex ensures stronger structural integrity.
- Stable Surface: Free of floating wires and layering, ensuring safety even in harsh weather conditions (wind, rain, snow).
Core Functions & Applications
1. Isolation: Prevents mixing of different soil/gravel layers to maintain structural integrity.
2. Filtration: High permeability allows water flow while intercepting soil particles.
3. Drainage: Forms internal channels for efficient liquid and gas emissions.
4. Reinforcement: Enhances soil tensile strength and anti-deformation ability.
5. Protection: Distributes stress to prevent soil damage from external forces.
6. Sealing: Forms impermeable layers when combined with asphalt or plastic films.

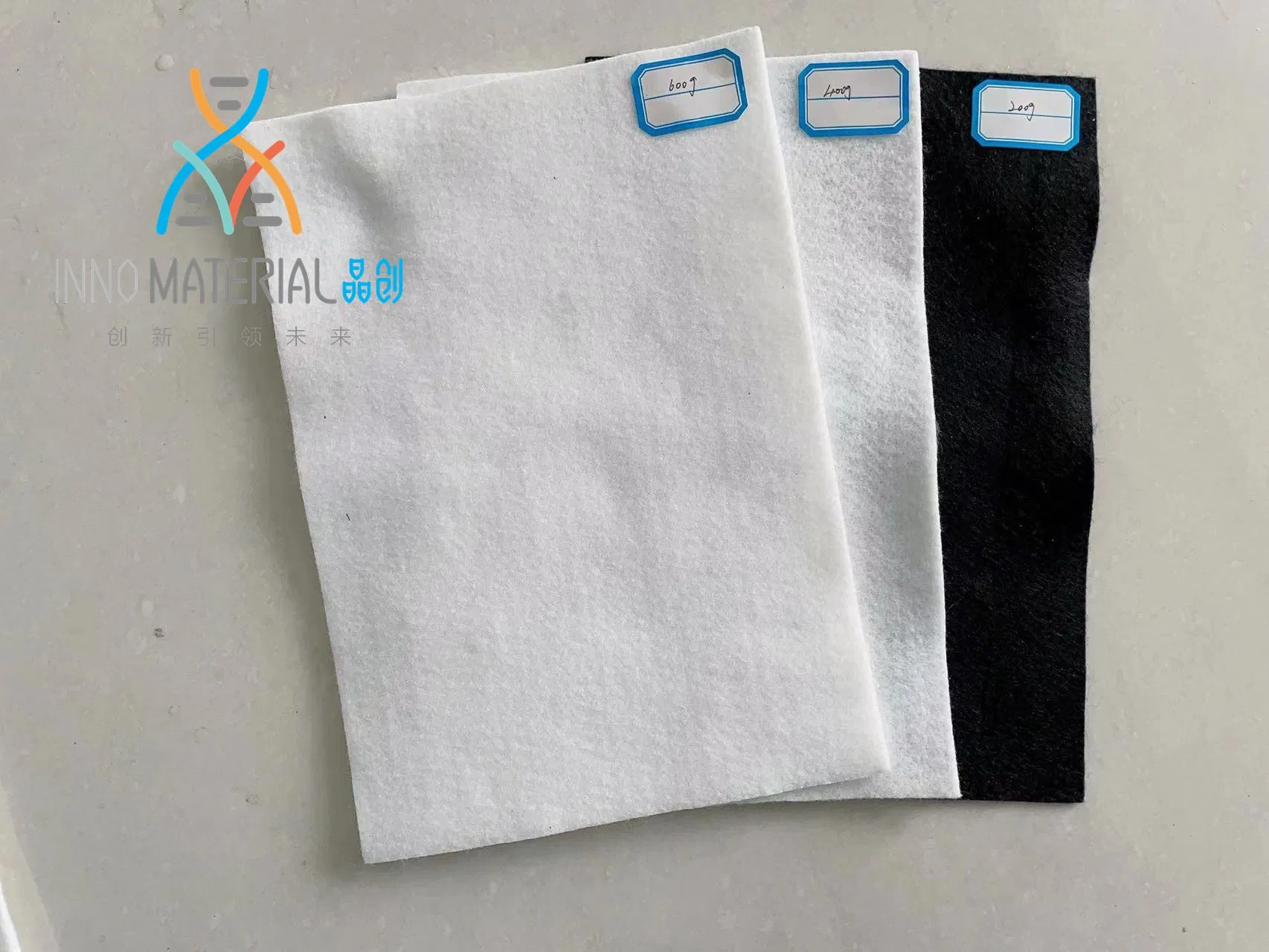

Technical Property Data
| Specification |
100g | 200g | 300g | 400g | 500g | 600g | 800g |
| Thickness (mm) |
1.2 | 1.8 | 2.6 | 3.3 | 4.0 | 4.5 | 6.0 |
| Breaking Strength (≥KN) |
6 | 15 | 22 | 28 | 34 | 40 | 50 |
| CBR Bursting (≥KN/m) |
1.0 | 2.5 | 3.5 | 4.3 | 5.3 | 6.2 | 7.8 |

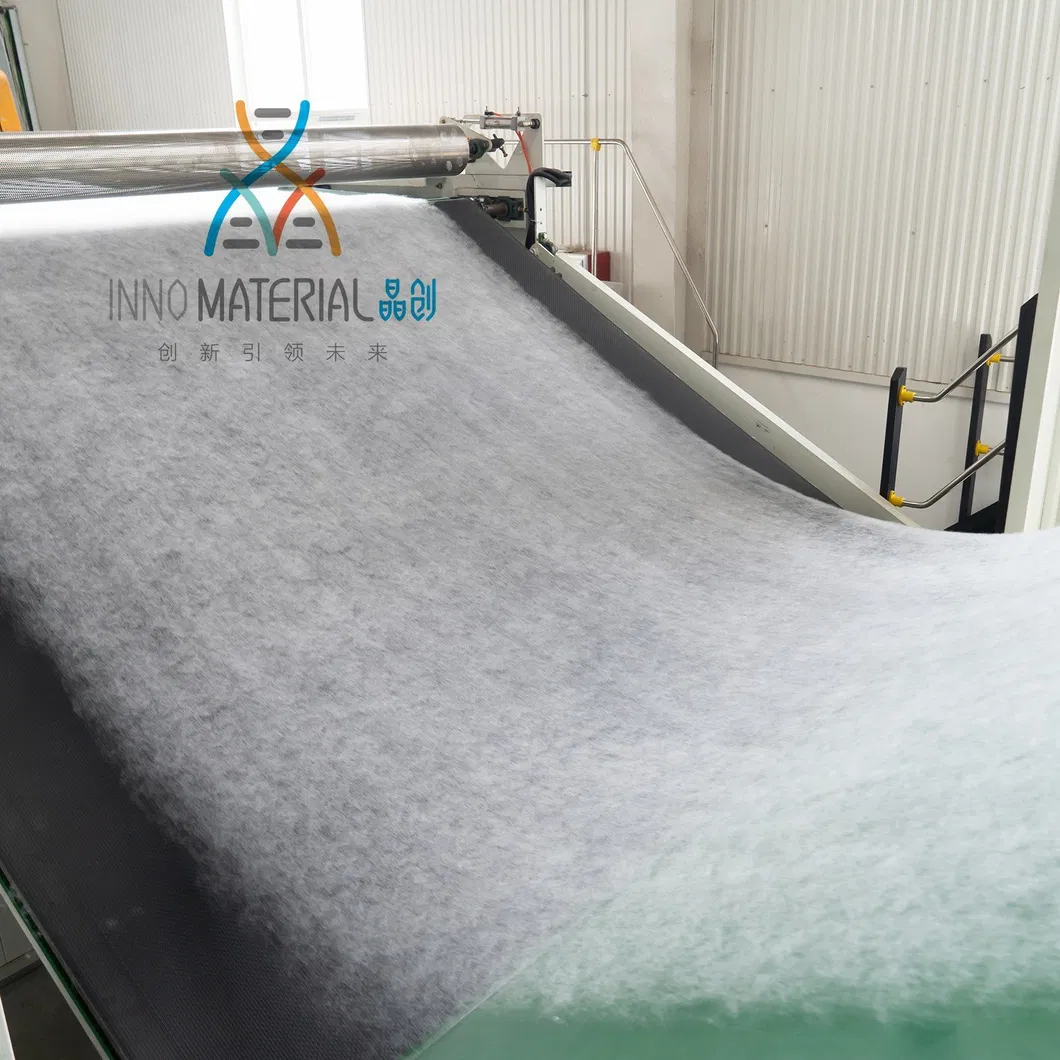

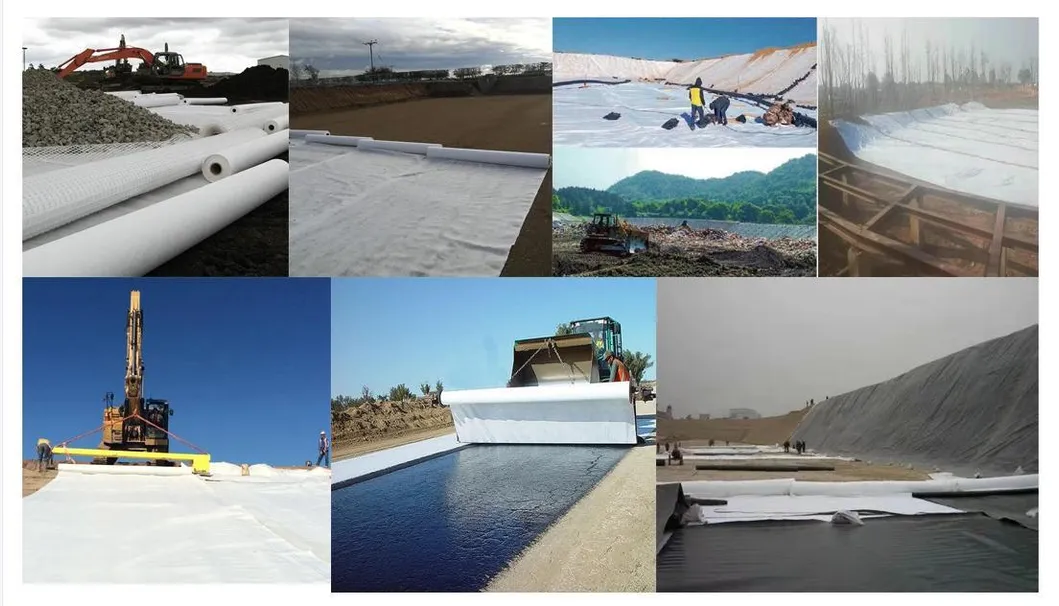

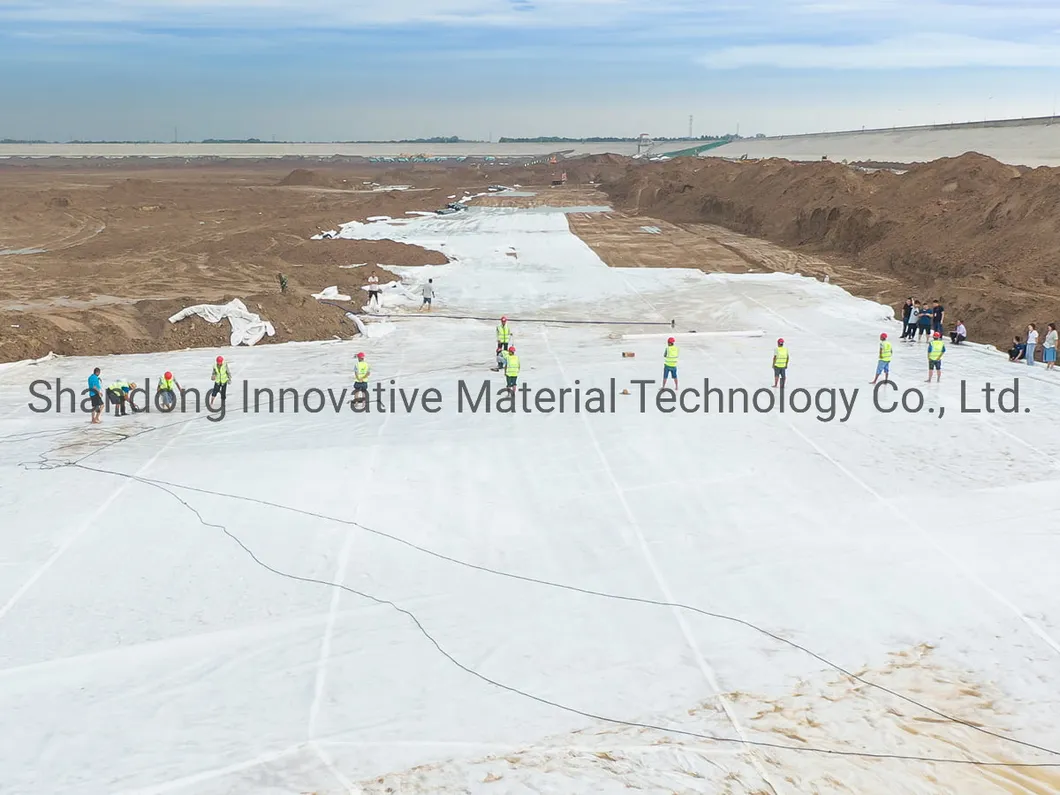

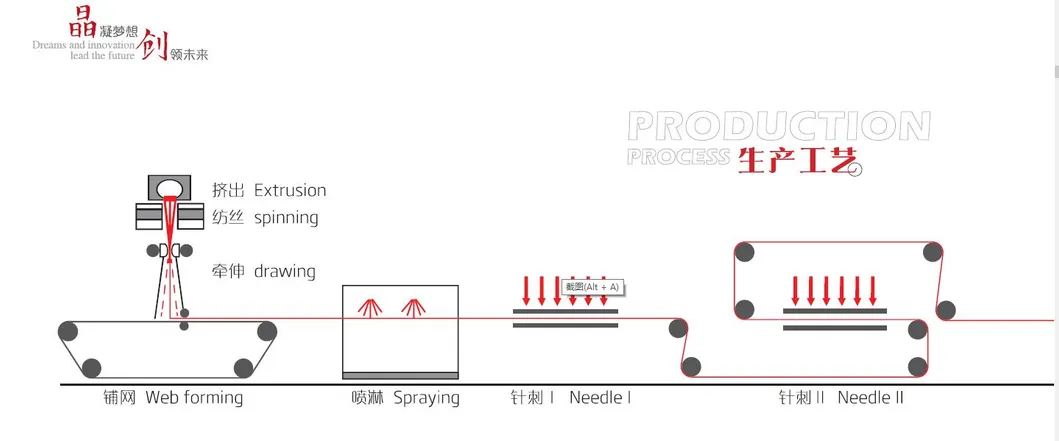

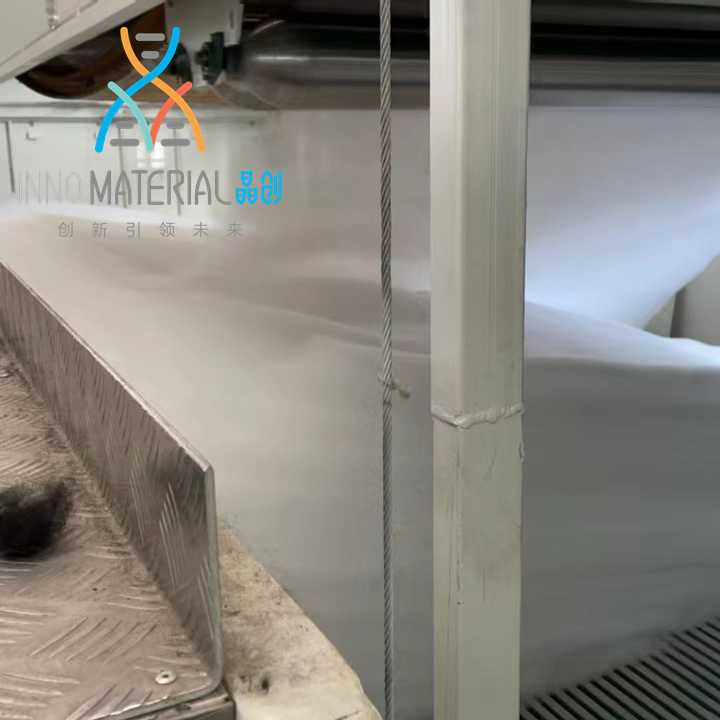

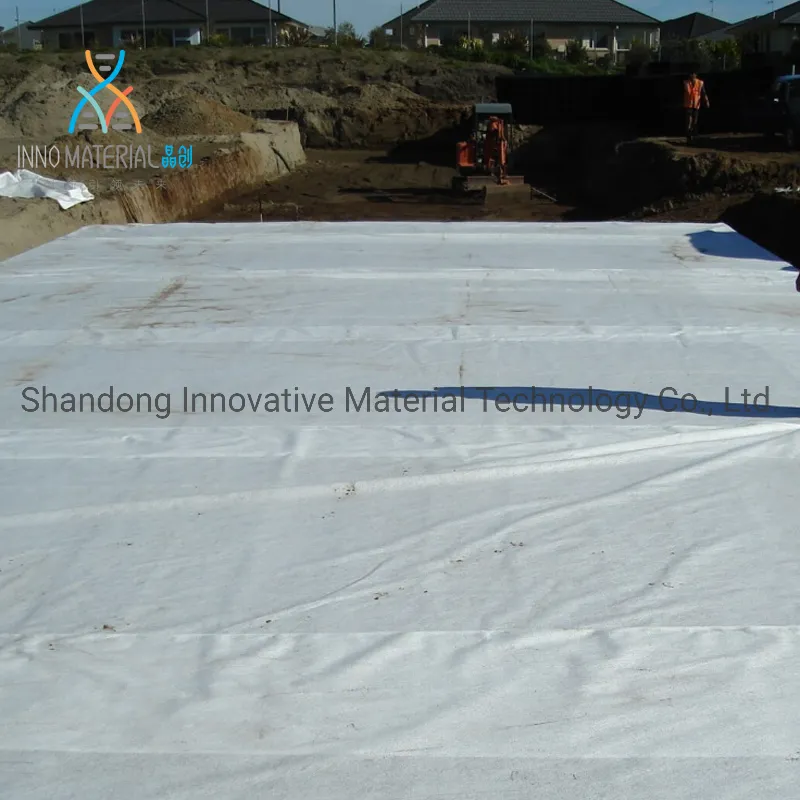

Manufacturing Process & Project Gallery
Quality Inspection & Certificates
We build high-standard experiments and technology centers to ensure every product meets international leading standards. Our focus remains on high-end geosynthetics with high social responsibility.
Frequently Asked Questions (FAQ)
What are the main advantages of a 6.5m wide geotextile?
The extra-wide design significantly reduces the number of splices needed during construction, which lowers labor costs and improves the overall structural integrity of the project.
Is this material resistant to chemicals?
Yes, the polypropylene (PP) filament geotextile is acid-resistant, alkali-resistant, and corrosion-resistant, making it ideal for harsh environmental conditions.
What is the daily production capacity?
Our current production capacity is approximately 50,000 square meters per day, depending on the specific weight and model requirements.
What applications is this product suitable for?
It is widely used in high-speed rail sliding layers, airport runways, highway roadbeds, landfill anti-seepage systems, and ecological slope protection.
What are the breaking strength ranges?
The breaking strength varies by specification, ranging from 6KN for 100g/m² fabrics up to 50KN for 800g/m² fabrics.
