📋 Basic Information
Properties
Good Flexibility Permeability Filtration
🚀 Polypropylene Filament Geotextile Advantages
Exclusive Technology: The world's first 6.5-meter-wide products. Equipment and technology are protected in Asia regional with four years of technology exclusive.
Reducing splicing, enabling convenient construction and saving costs.
Process equipment adopts automatic systems developed by world leading manufacturers (Oerlikon and OBA).
Raw materials (polypropylene particles) are selected from French TOTAL, a global petrochemical leader.
Single fiber is within 5.5-13dtex, providing stronger mechanical properties compared to similar products.
Surface is free of floating wire and no layering, ensuring safety on steep slopes and extreme weather sites.
🛠️ Key Functions
1. Isolation: Maintains overall structure and load-bearing capacity by preventing mixing of different soil/materials.
2. Filter: Excellent air and water permeability to intercept soil particles while allowing water flow.
3. Drainage: Forms an internal drainage channel to discharge excess liquid and gas.
4. Reinforced: Enhances soil tensile strength and stability of building structures.
5. Protection: Prevents soil damage by distributing external stress and forces.
6. Closed: Formations of impermeable layers when combined with asphalt or film for road repair.

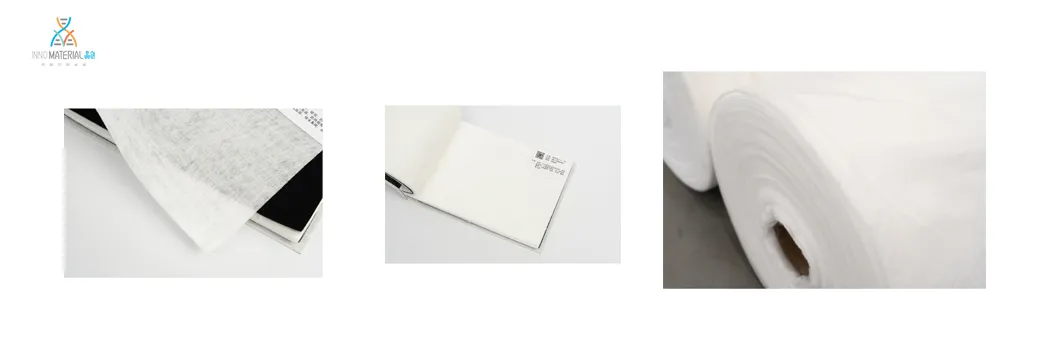

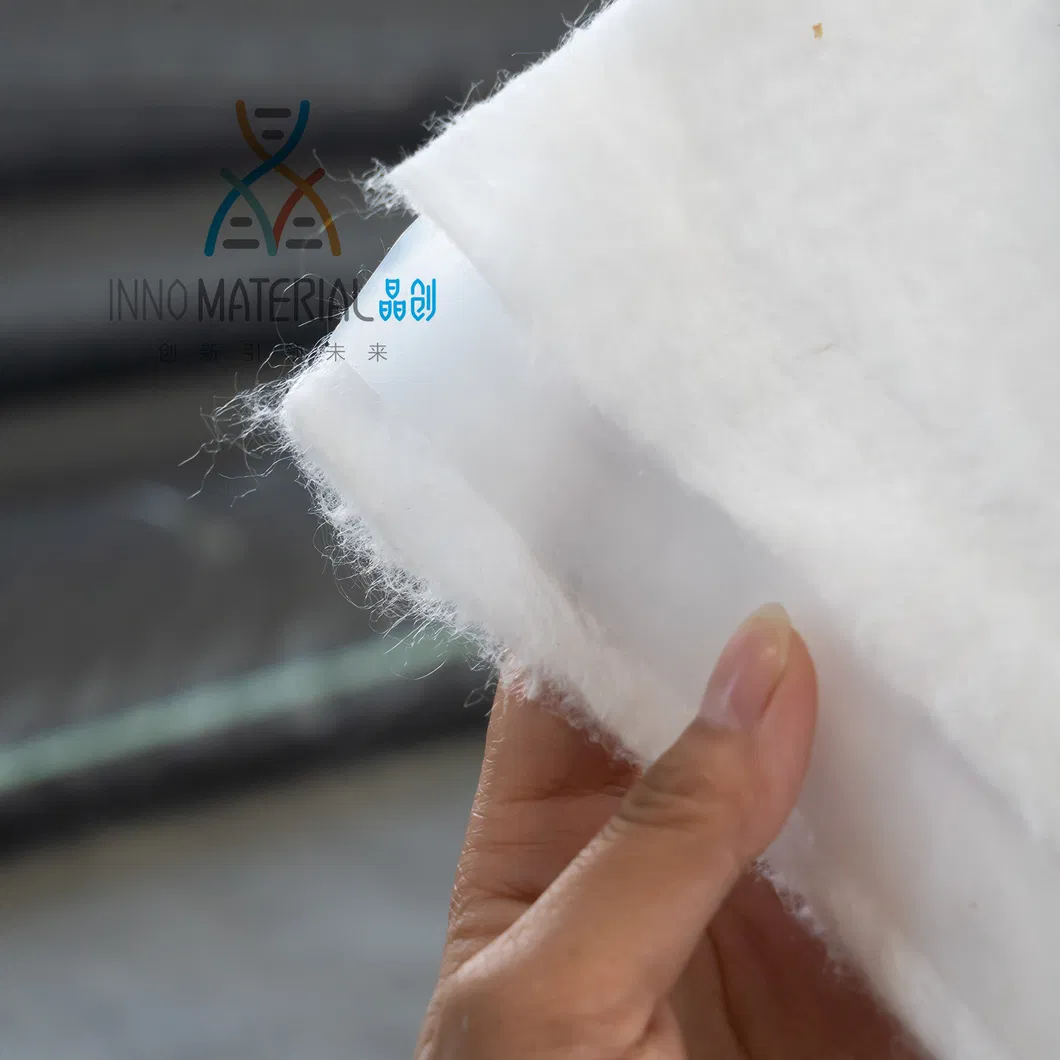

📸 Product Details

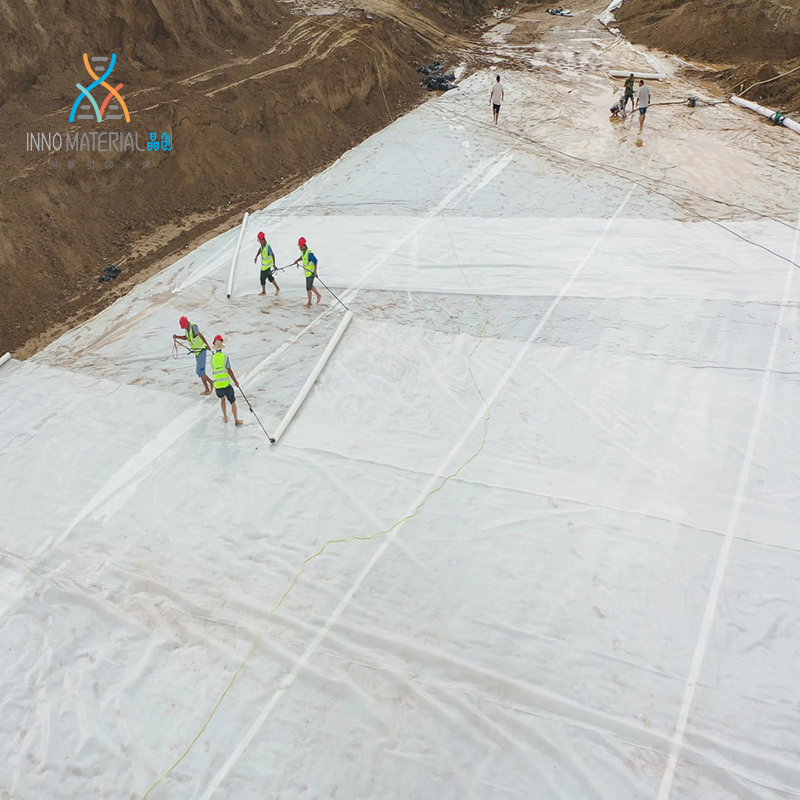

🌍 Application Fields
• High-speed rail sliding layers and ballast-free track isolation.
• Airport runways and apron crack proofing.
• Port, wharf, expressway and highway roadbed reinforcement.
• Sewage treatment plants, landfills, and environmental protection structures.
• Farmland irrigation, water conservancy, and reservoir channel projects.
📊 Technical Data Property
| Weight (g/m2) |
100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Thickness (mm) |
1.2 | 1.8 | 2.6 | 3.3 | 4.0 | 4.5 | 6.0 |
| Breaking Strength (≥KN) |
6 | 15 | 22 | 28 | 34 | 40 | 50 |
| CBR Bursting (≥KN/m) |
1.0 | 2.5 | 3.5 | 4.3 | 5.3 | 6.2 | 7.8 |

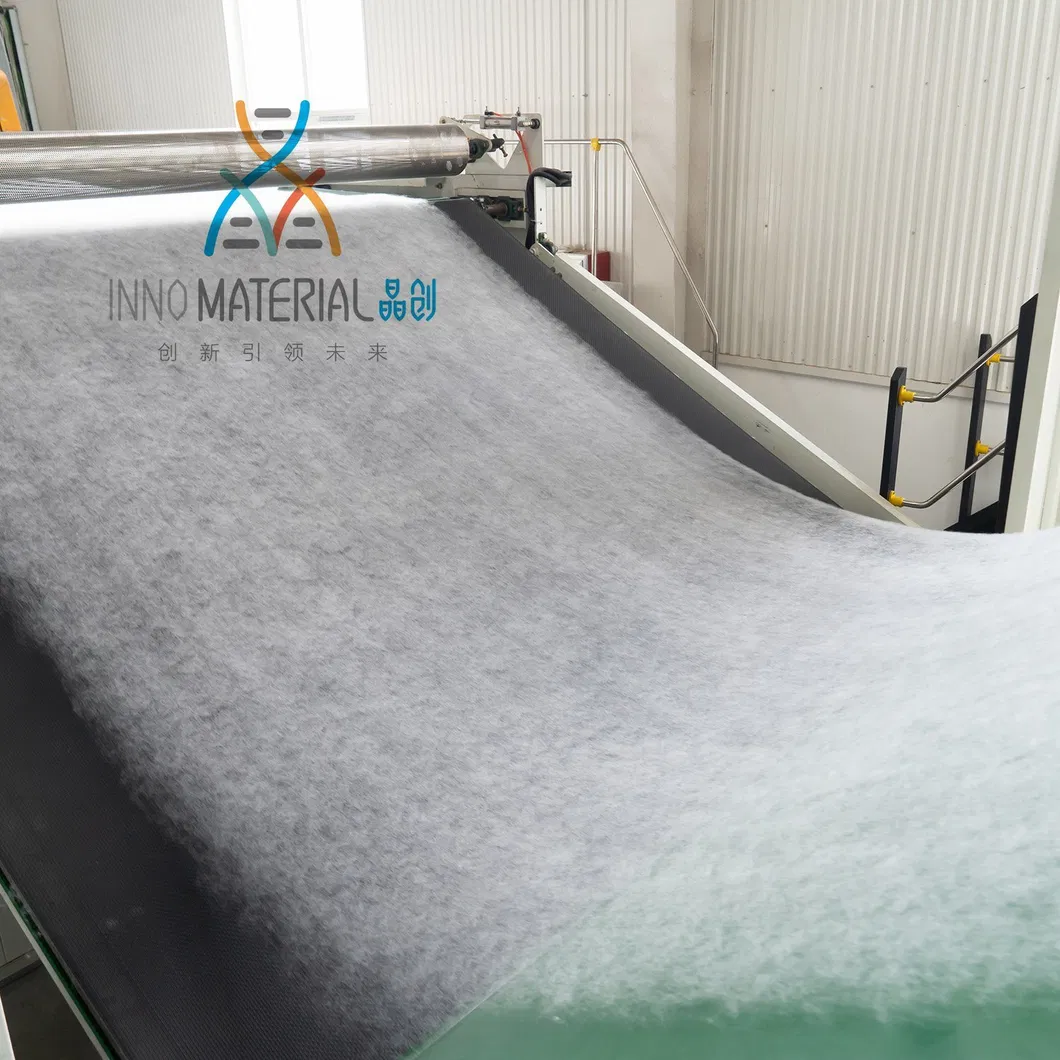

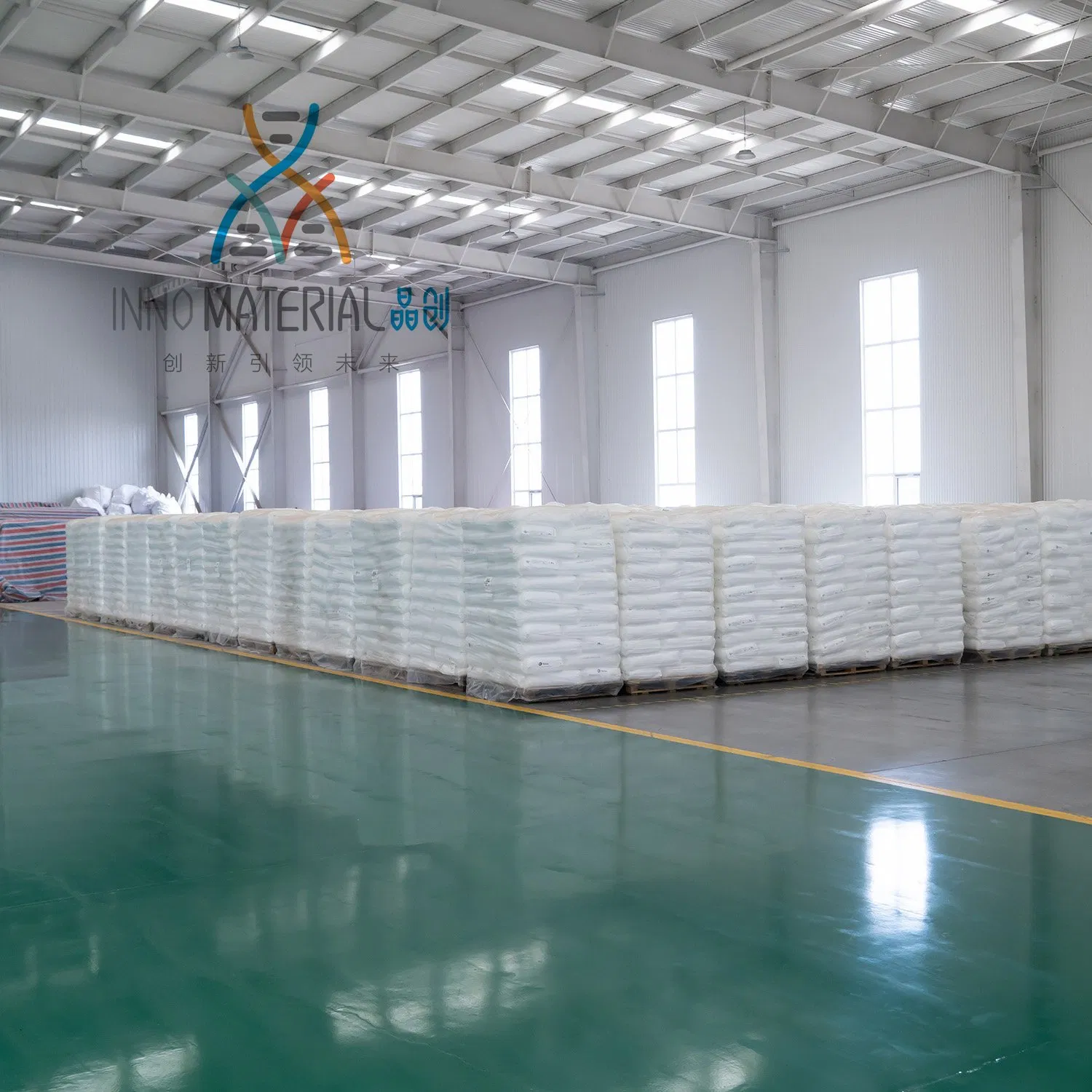

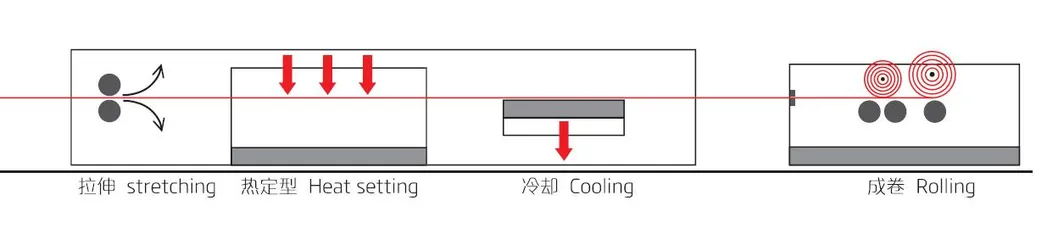

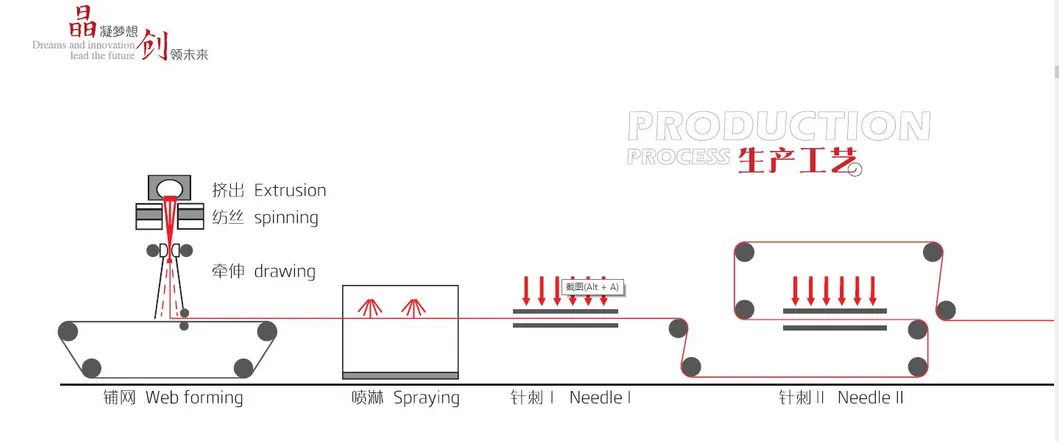

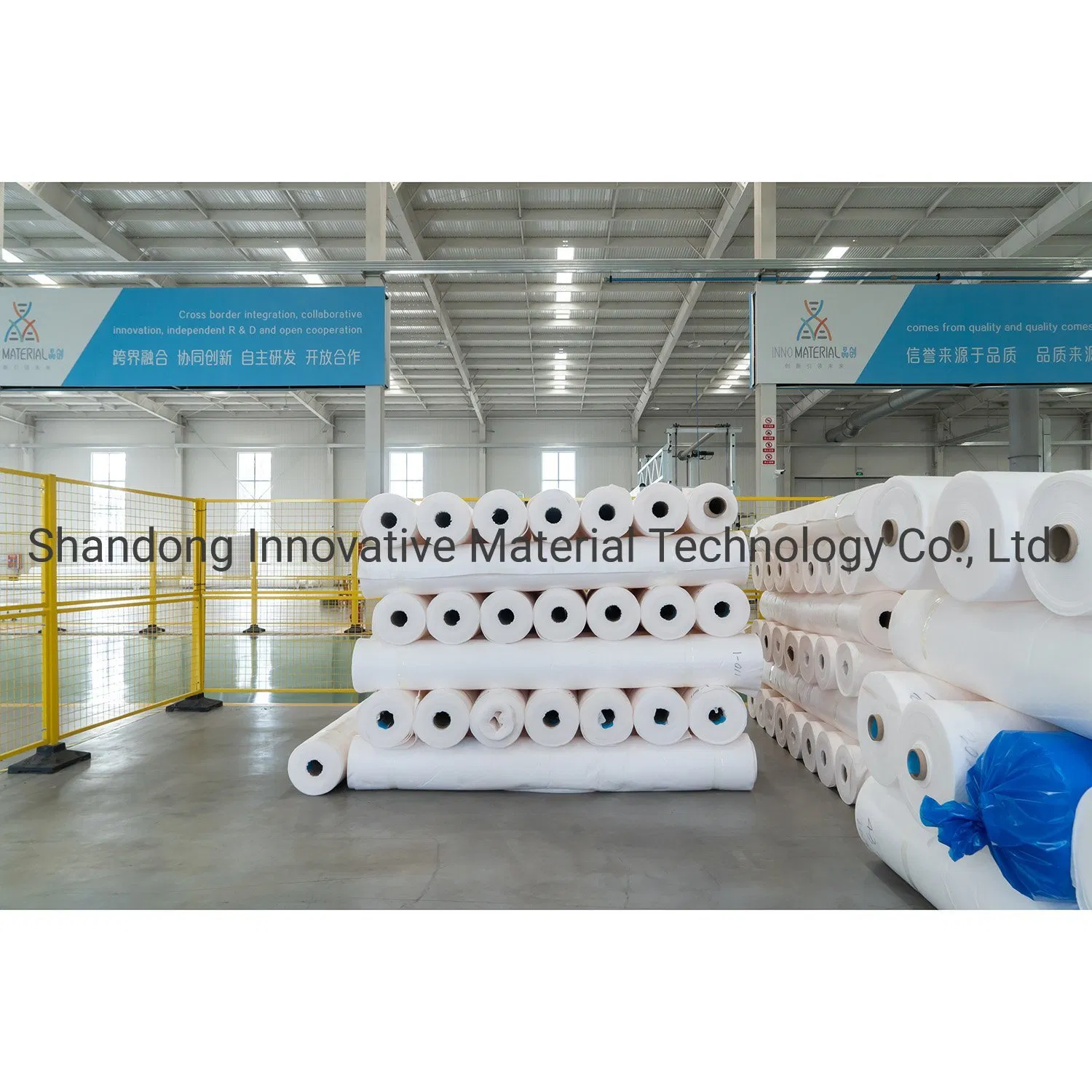

🏭 Production & Quality

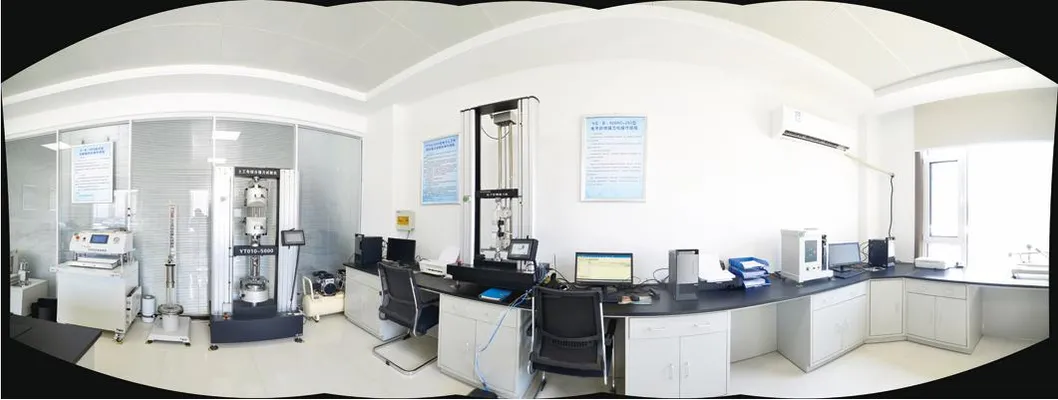

🏆 Certificates & Inspection
❓ Frequently Asked Questions (FAQ)
Q: What is the maximum width of the polypropylene filament geotextile?
A: We offer the world's first 6.5-meter-wide products, which significantly reduce the need for splicing and lower construction costs.
Q: What are the primary features of your geotextile?
A: The products are corrosion-resistant, oxidation-resistant, and wear-resistant, specifically designed to handle acid, alkali, and harsh environmental conditions.
Q: Where are the raw materials sourced from?
A: Our polypropylene particles are selected from French TOTAL, ensuring top-tier chemical stability and mechanical performance.
Q: What is the production capacity for high-speed projects?
A: Our current production capacity reaches up to 50,000 square meters per day, depending on the specific weight and model requirements.
Q: Is the product suitable for environmental protection projects?
A: Yes, it is ideal for landfills, sewage treatment plants, and pollutant storage tanks due to its excellent filtration and anti-seepage properties.
Q: What certifications do your products hold?
A: Our products meet international standards including CE certification and follow ASTM specifications.
