The world's first 6.5-meter-wide products

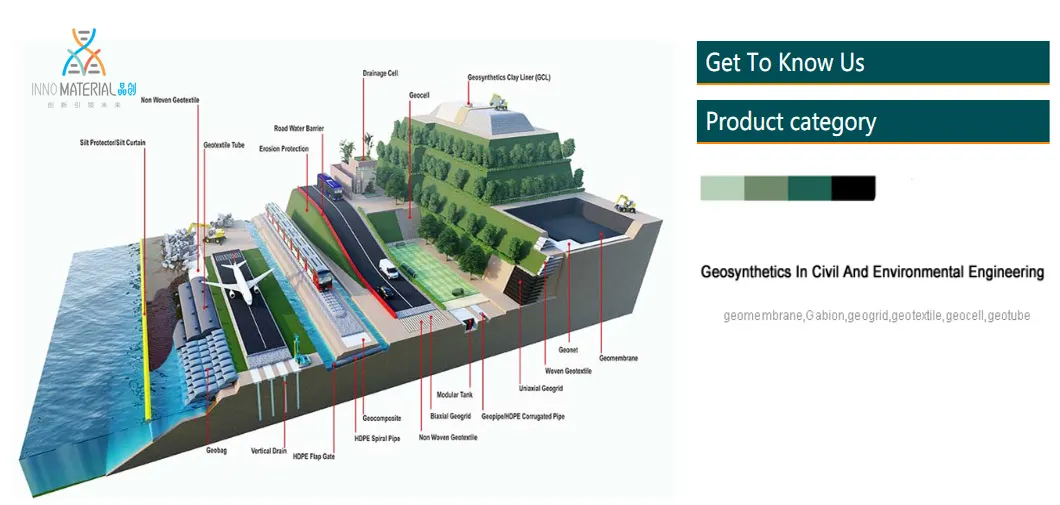

1. Isolation: Prevents mixing of different soil/material layers to maintain structure and load capacity.
2. Filter: Excellent water permeability while effectively intercepting soil particles to maintain stability.
3. Drainage: Acts as an internal drainage channel for soil and excess liquid/gas emissions.
4. Reinforced: Enhances soil tensile strength and anti-deformation capability.
5. Protection: Focuses on stress-proliferation and asset protection from external forces.
6. Closed: Works with asphalt or plastic film to form impermeable insulation layers for road repair.
| Weight (g/m²) | 100 | 200 | 300 | 400 | 500 | 600 | 800 |
|---|---|---|---|---|---|---|---|
| Thickness (mm) | 1.2 | 1.8 | 2.6 | 3.3 | 4.0 | 4.5 | 6.0 |
| Breaking Strength (≥KN) | 6 | 15 | 22 | 28 | 34 | 40 | 50 |
| CBR Bursting (≥KN/m) | 1.0 | 2.5 | 3.5 | 4.3 | 5.3 | 6.2 | 7.8 |
| Tear Strength (≥KN) | 0.21 | 0.40 | 0.58 | 0.75 | 0.85 | 1.0 | 1.30 |
