Basic Info.
| Model NO. | 323 |
| Shelf Time | 1 Year |

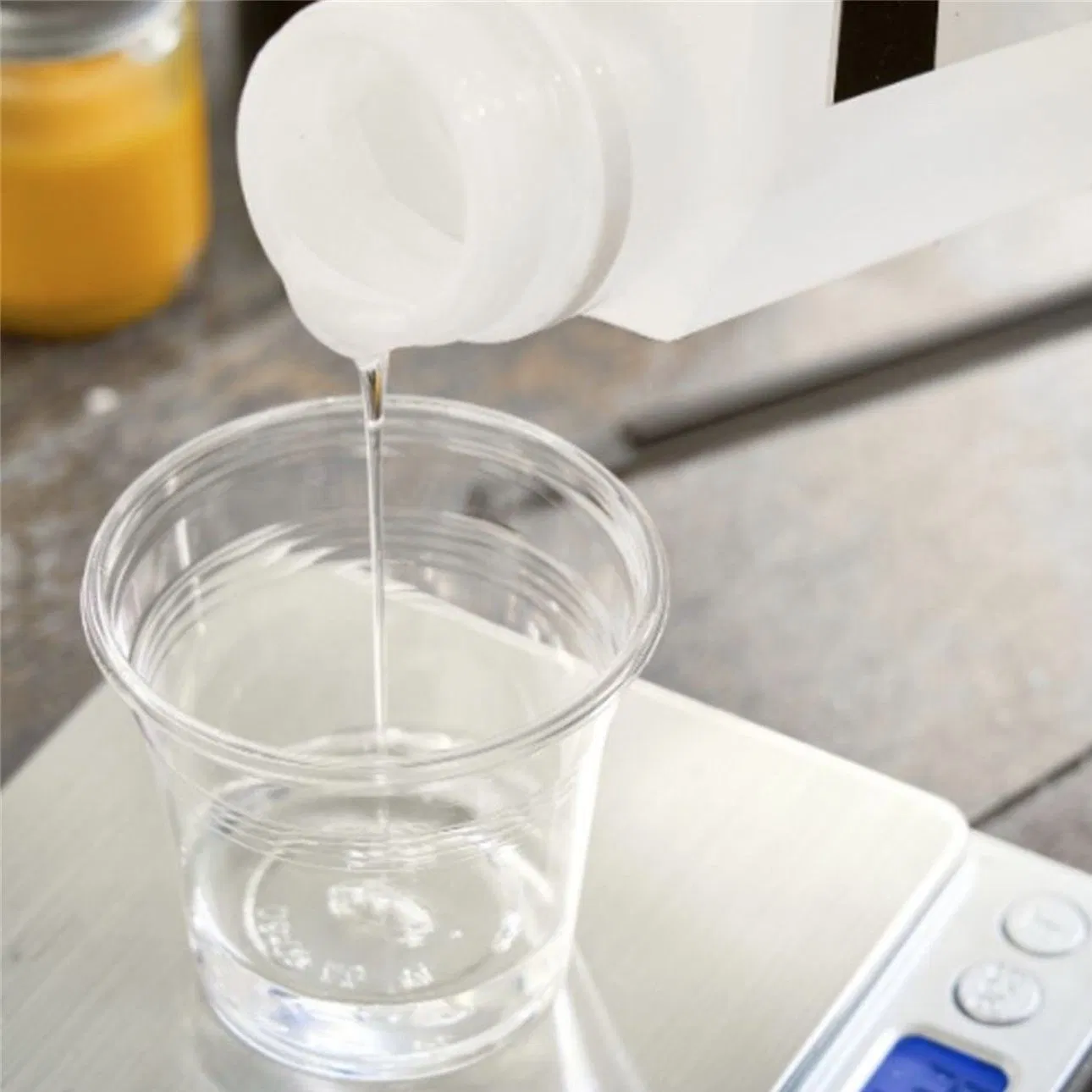

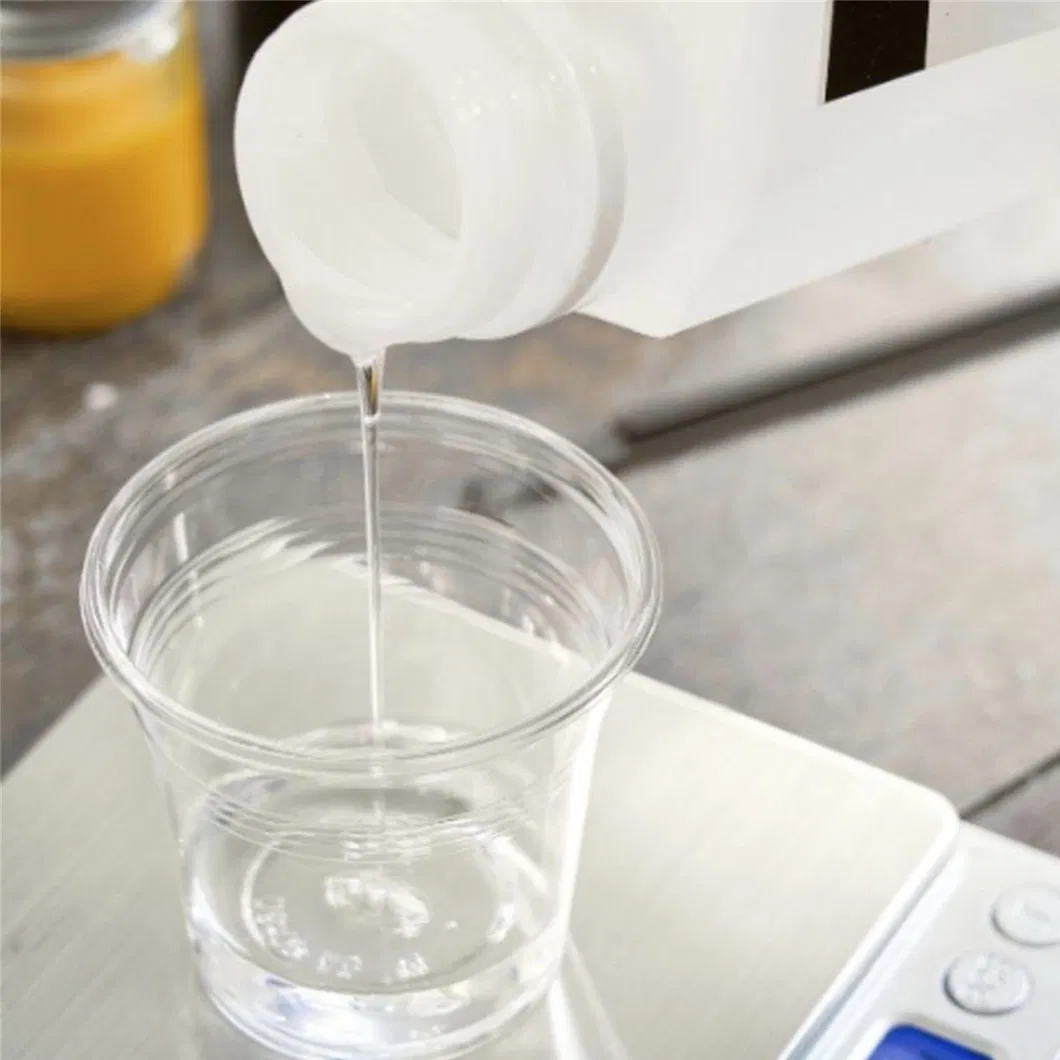

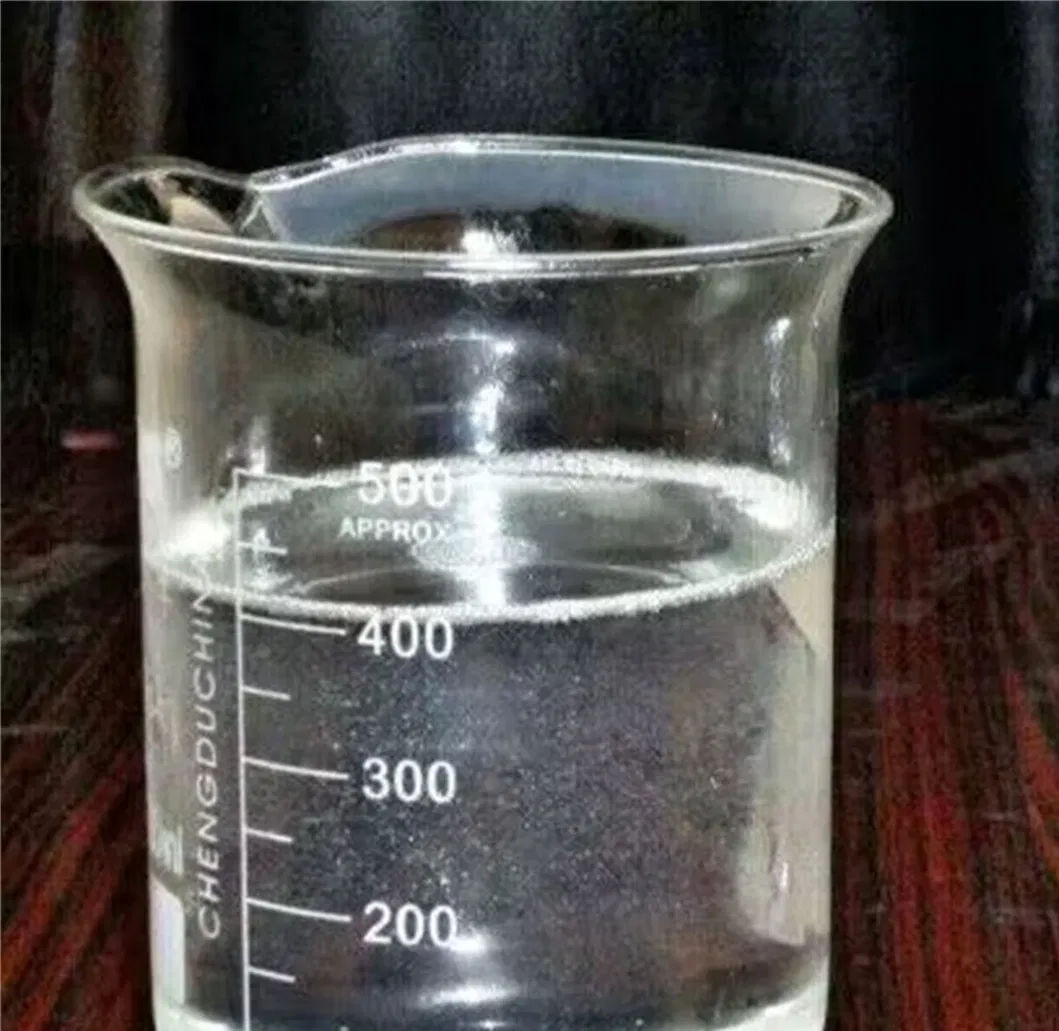

| Appearance | Colorless Transparent Liquid |

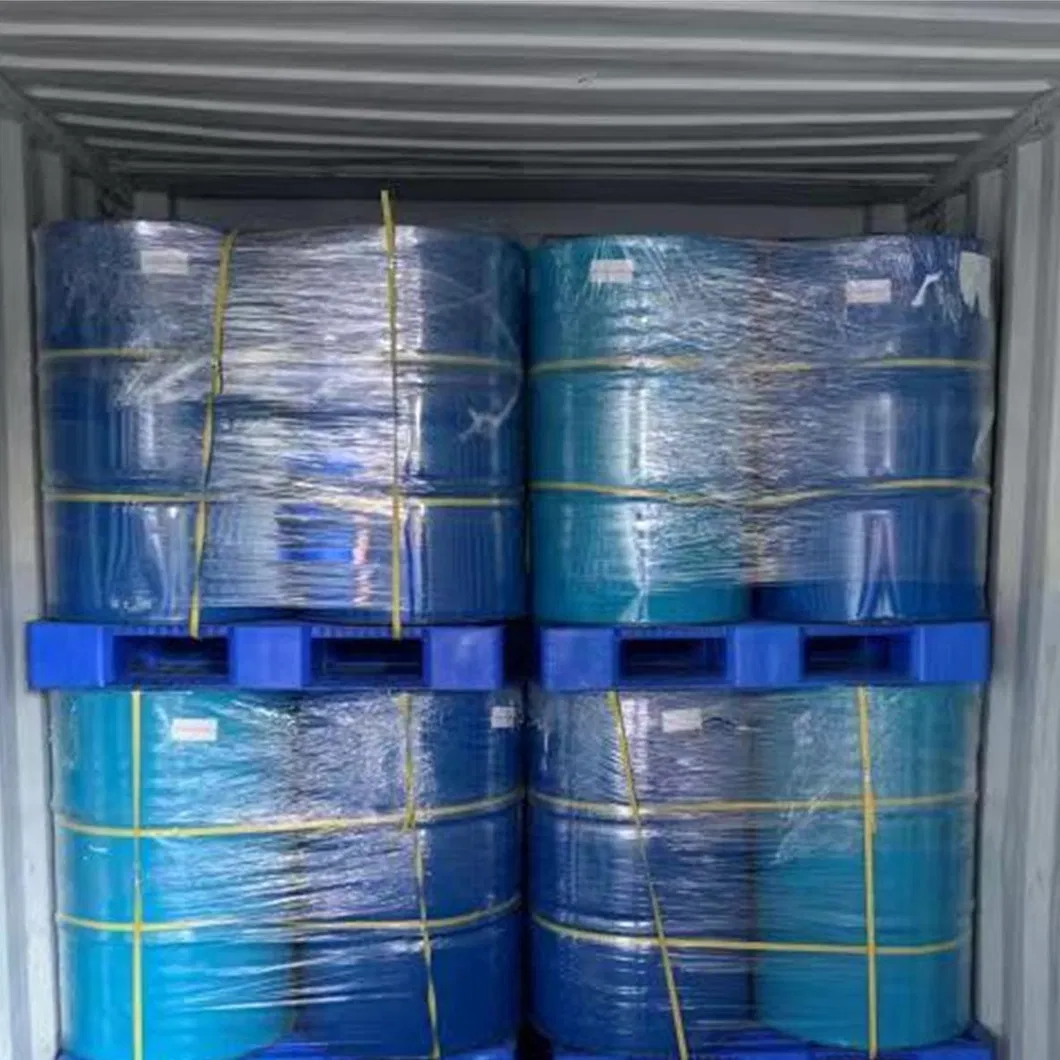

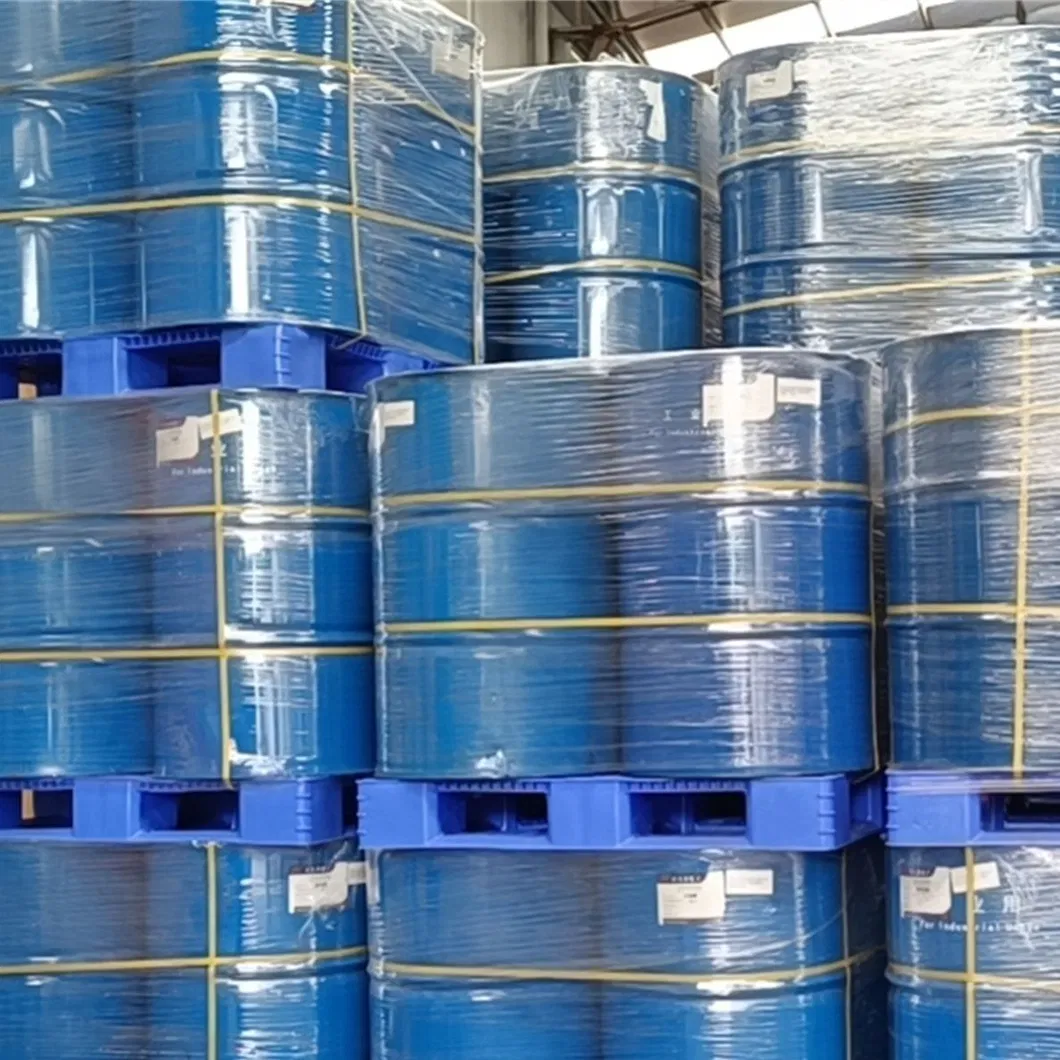

| Transport Package | Drum |
| Specification | A Grade Quality |
| HS Code | 35069120 |
| Production Capacity | 10000ton/Year |
✓
Product Description
Epoxy resin 3136AB-SM11 is an epoxy resin glue cured at room temperature and low temperature. It has strong adhesion, good yellowing resistance, very good surface effect, natural defoaming, greenhouse curing or heating curing; it is specially used for covering large areas. Marble surface coating, resin painting surface coating, removal, background wall surface coating, and other nameplates, electronic potting and bonding, mold perfusion, and insulation, moisture-proof potting, confidentiality sealing, coating protection, etc. of other electronic parts.
★
Applications
It is dedicated to the insulation of large pieces of crafts, river table and electronic potting and mold filling and other electronic parts, moisture-proof potting, secret sealing and so on.
⚙
Product Parameters
Hardening Properties:
- Epoxy 3560A / Harder 3560B
- Color: Colorless and transparent
- Proportion: 1.15 / 0.96
- Viscosity 25ºC: 1000-1500CPS / 100-300MAXCPS
Conditions of Use:
- Ratio: A:B=100:33 (weight) / 100:50 (volume)
- Hardening: 25ºC×72H or 55ºC×2H (100g)
- Pot life: 25ºC×1 hour(100g)
Hardened Property:
- Hardness: shore D 80-83D
- Withstand voltage: 22 KV/mm
- Bending strength: 28 Kg/mm2
- Compressive strength: 8.4 Kg/mm2
Other Ratings:
- Thermal conductivity: 1.36 W/M.K
- Heat distortion: 90-100 ºC
- Water absorption: <0.15%
- Surface resistance: 5X10^15 Ohmm2
* Typical data measured at 25°C and 70% humidity. For reference only.
Give us a chance, and we'll return you with satisfaction.
?
Frequently Asked Questions
Q1: What is the mix ratio for 3136AB-SM11 epoxy resin?
A: The weight ratio is A:B = 100:33, while the volume ratio is A:B = 100:50.
Q2: How long does it take for the resin to cure?
A: It can cure in 72 hours at 25°C or in approximately 2 hours if heated to 55°C.
Q3: Is this resin resistant to yellowing?
A: Yes, it is specifically formulated with good yellowing resistance for marble and craft coatings.
Q4: Can this be used for large river tables?
A: Yes, it is dedicated to large pieces of crafts, river tables, and electronic potting.
Q5: What are the main appearance characteristics?
A: It is a colorless transparent liquid with natural defoaming properties for a very smooth surface effect.
Q6: What is the shelf life of this product?
A: The product has a shelf life of 1 year under proper storage conditions.
