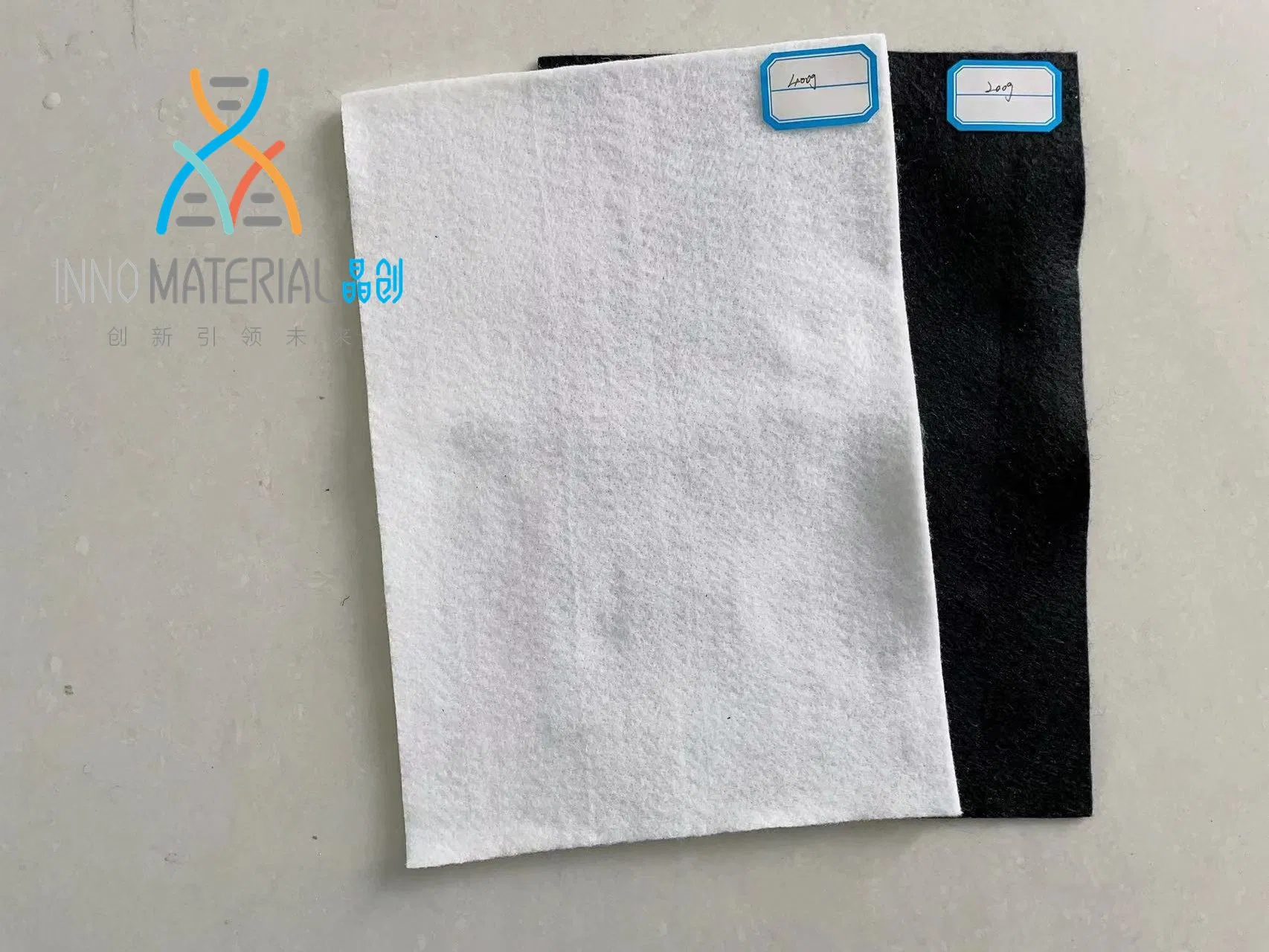

Basic Information
Material
PP (Polypropylene)
Usage
Insulation, Waterproof, Water Filter
Feature
Corrosion Resistant, Wear-resistant

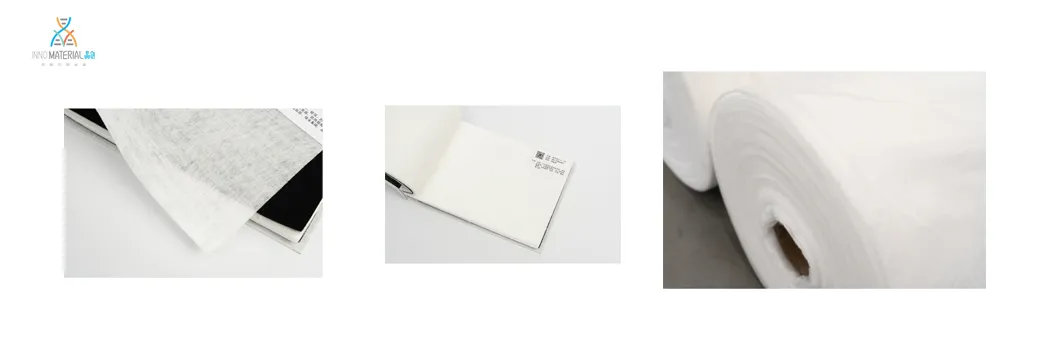

Polypropylene Filament Geotextile Advantages
🚀 The world's first 6.5-meter-wide products. Equipment and Technology protected in Asia with four years of exclusivity.
Reducing splicing, enabling convenient construction and saving costs.
Utilizes automatic equipment developed by world-leading textile manufacturers.
Raw materials selected from French TOTAL, a top global petrochemical company.
Single fiber is within 5.5-13dtex, providing stronger mechanical properties.
Surface free of floating wire; no layering under wind, rain, or steep slope conditions.

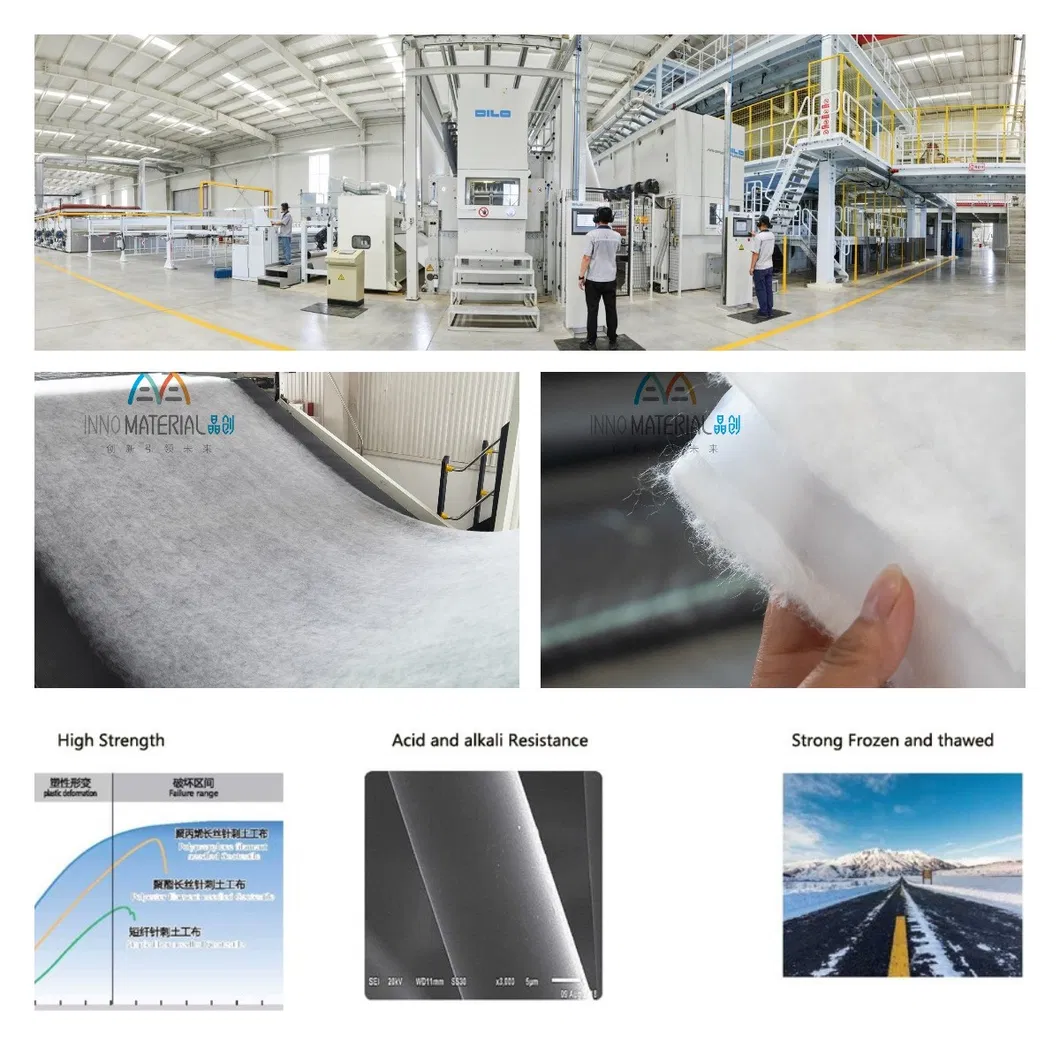

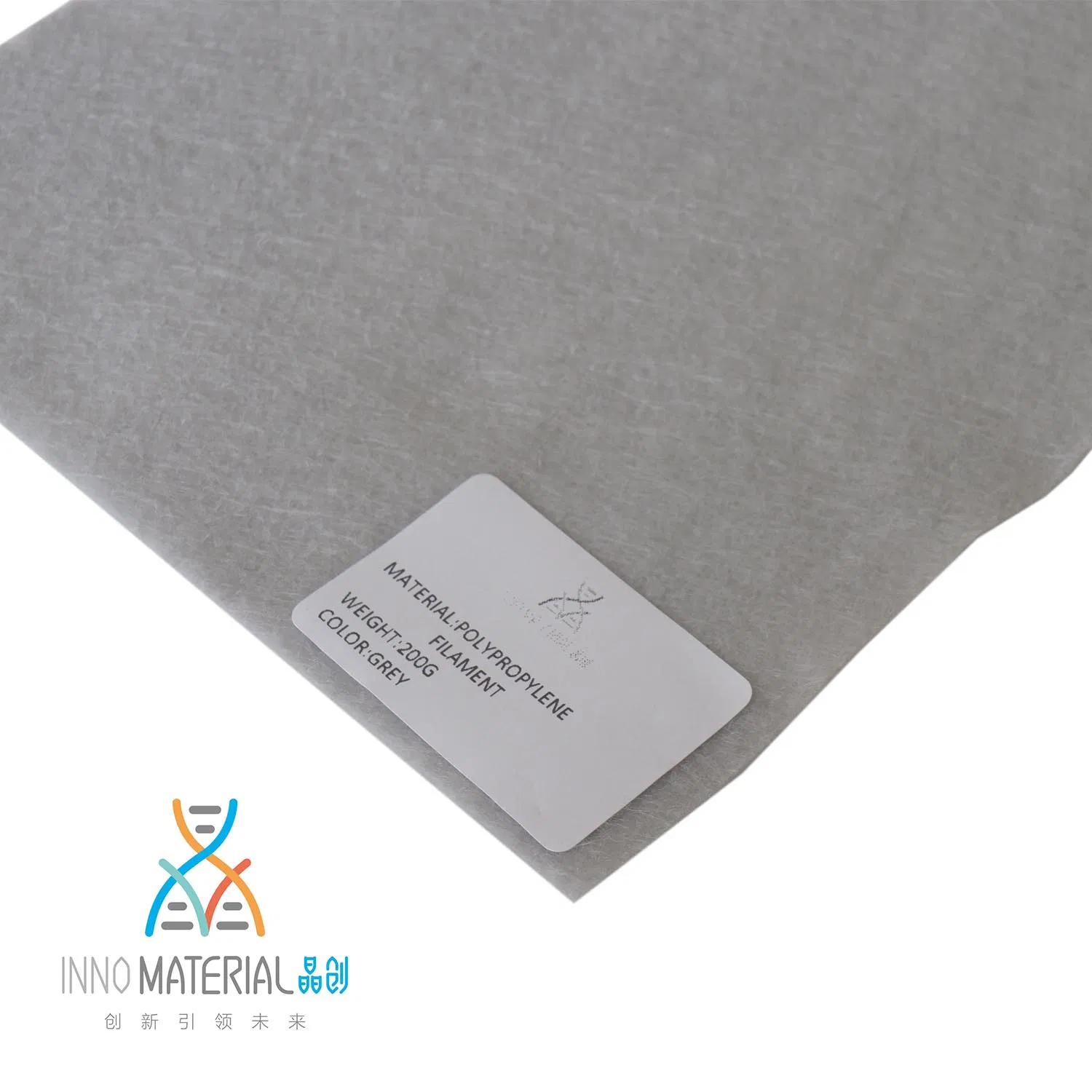

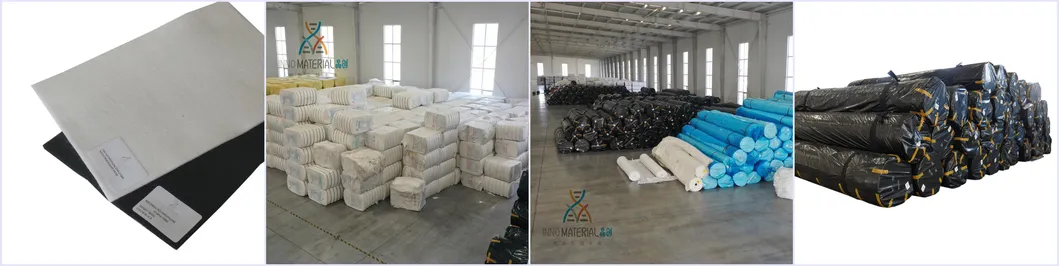

Product Display
Main Functions
Isolation: Prevents mixing of different soil/material layers to maintain structure stability.
Filter: Excellent air and water permeability while effectively intercepting soil particles.
Drainage: Forms an internal drainage channel within the soil structure.

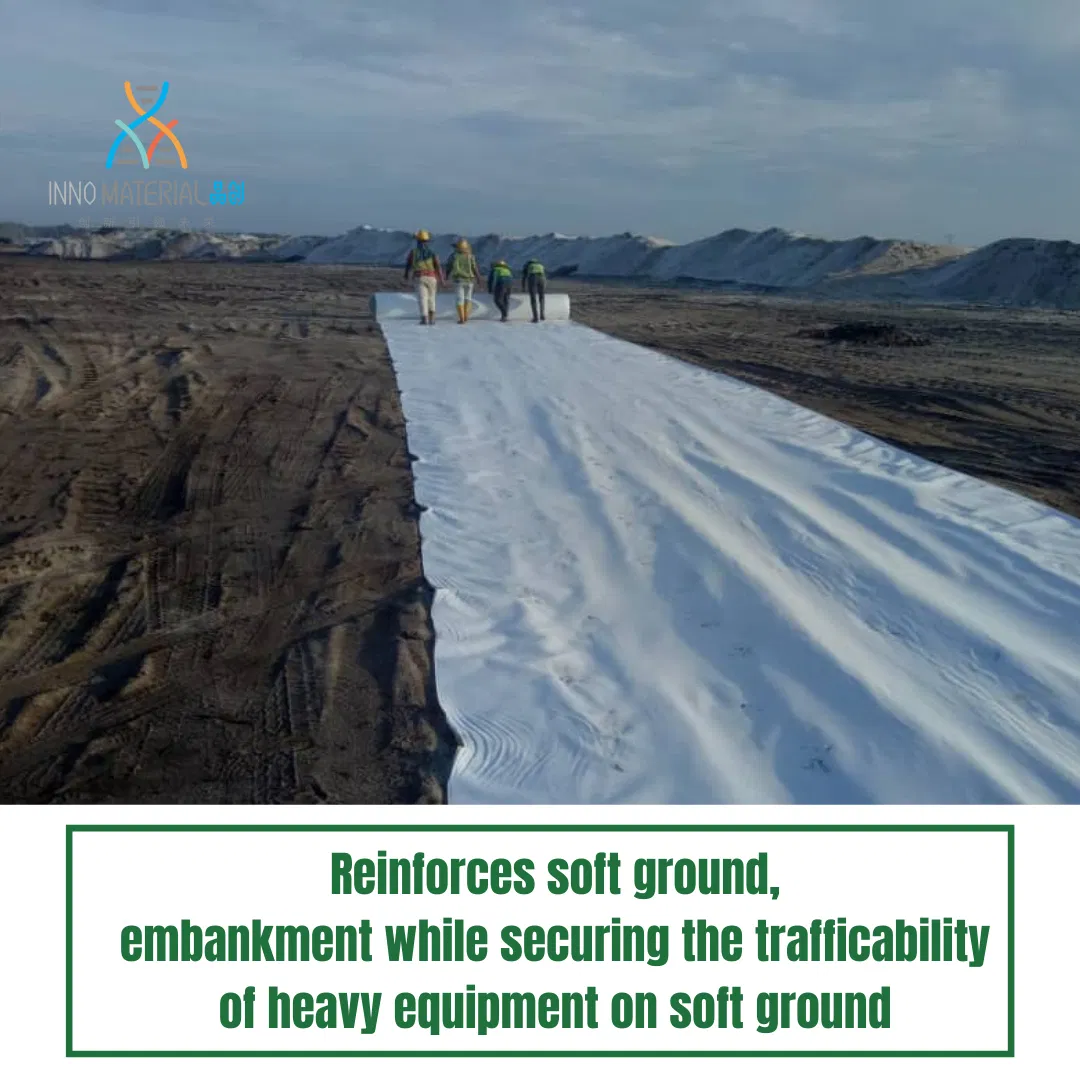

Reinforced: Enhances soil tensile strength and anti-deformation ability.
Protection: Disperses effective stress to prevent soil damage from external forces.
Technical Data Property
| Specification (g/m2) |
100 | 200 | 300 | 400 | 500 | 600 | 800 |
| Breaking Strength (≥KN) |
6 | 15 | 22 | 28 | 34 | 40 | 50 |
| Thickness (mm) |
1.2 | 1.8 | 2.6 | 3.3 | 4.0 | 4.5 | 6.0 |
| CBR Bursting (≥KN/m) |
1.0 | 2.5 | 3.5 | 4.3 | 5.3 | 6.2 | 7.8 |

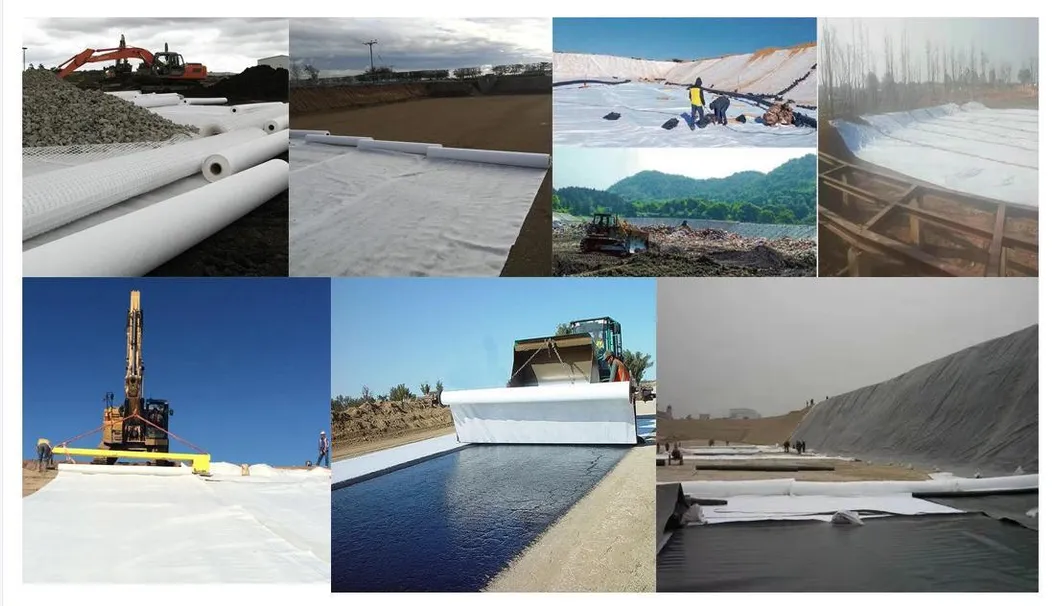

Product Application

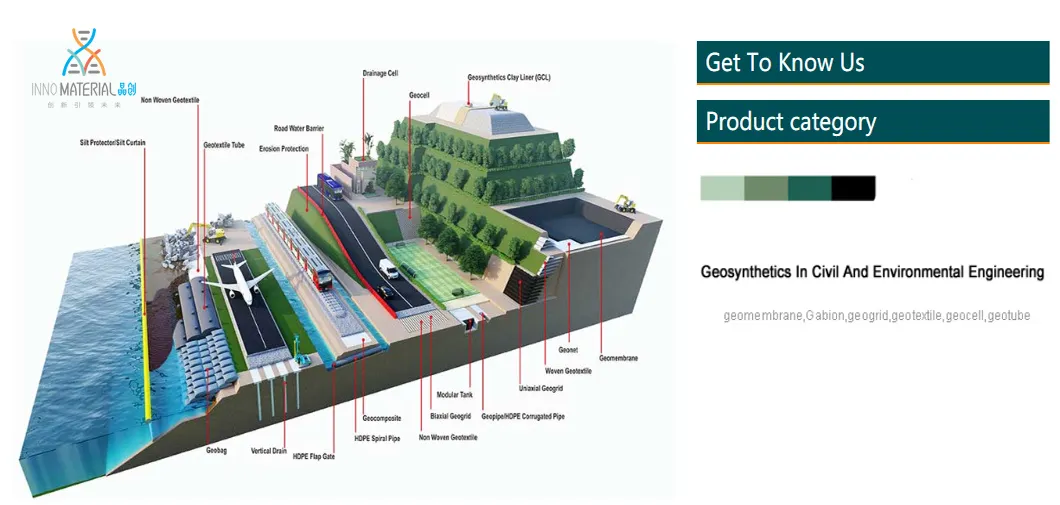

Applications include: High-speed rail sliding layers, airport runways, expressway roadbeds, port reinforcement, Sponge City pipelines, sewage treatment plants, landfill isolation, and ecological slope protection.

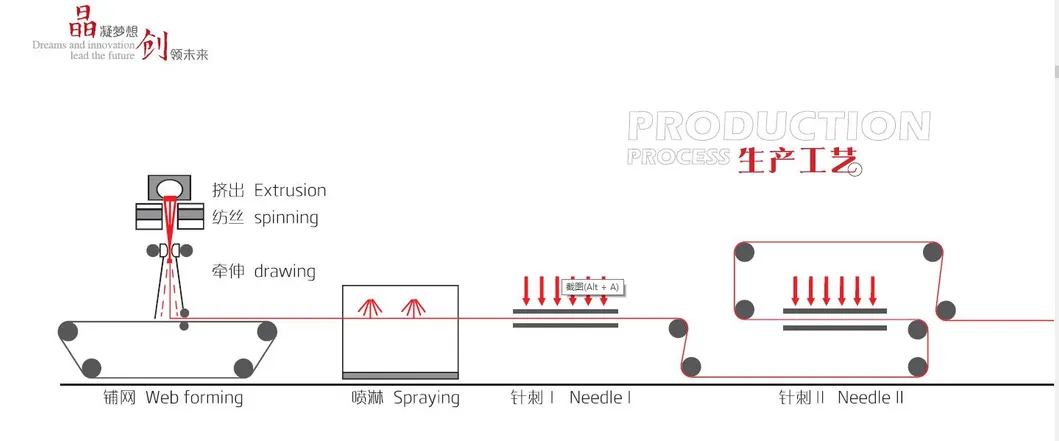

Production & Quality Control
Frequently Asked Questions
What is the maximum width available for these geotextiles?
We offer the world's first 6.5-meter-wide products, which significantly reduce splicing needs and construction costs.
What materials are used in the production?
Our geotextiles are made from high-quality polypropylene (PP) particles sourced from international leading petrochemical companies.

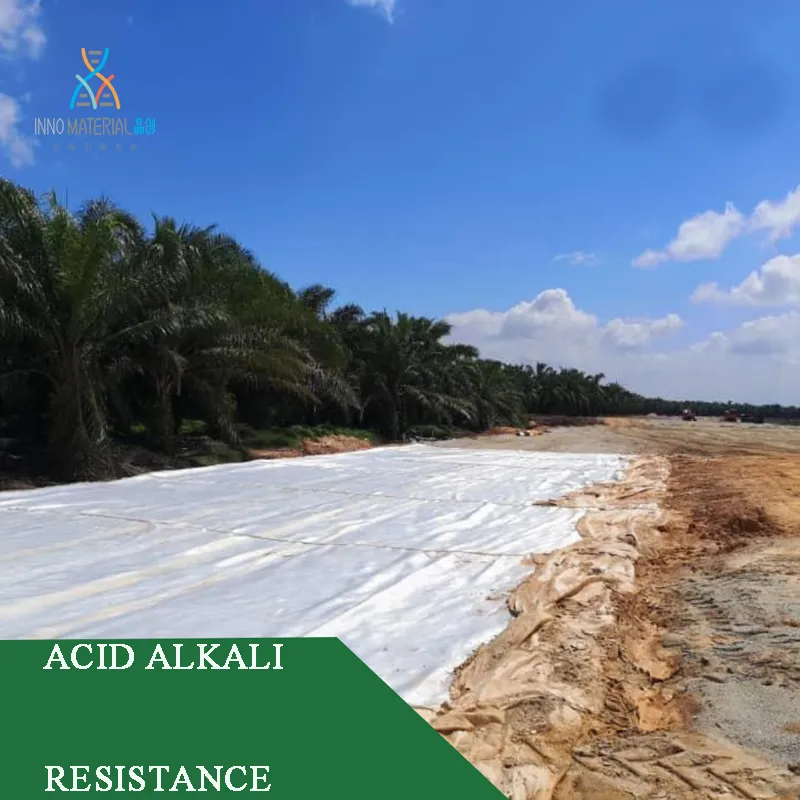

Are these products resistant to environmental factors?
Yes, our polypropylene filament geotextiles are acid-resistant, alkali-resistant, and corrosion-resistant, ensuring a long service life.
What are the primary functions of this geotextile?
The main functions include isolation, filtration, drainage, reinforcement, protection, and creating impermeable layers.
Can the specifications be customized?
Yes, lengths can be customized, and weight specifications range from 80g to 1000g to suit different engineering requirements.
What is the production capacity?
Our production lines can reach a capacity of 50,000 square meters per day, depending on the specific product specifications.
